Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Input Voltage | 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | Cage Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 52 A |
| Output Power | 2496 W |
| Output Voltage | 48 VDC |
| Primary Type | AC-DC |
| Series | |
| Special Features | ORing MOSFET |
| Type | Front End |
| Voltage, Input Range | 170-265 VAC |
Overview

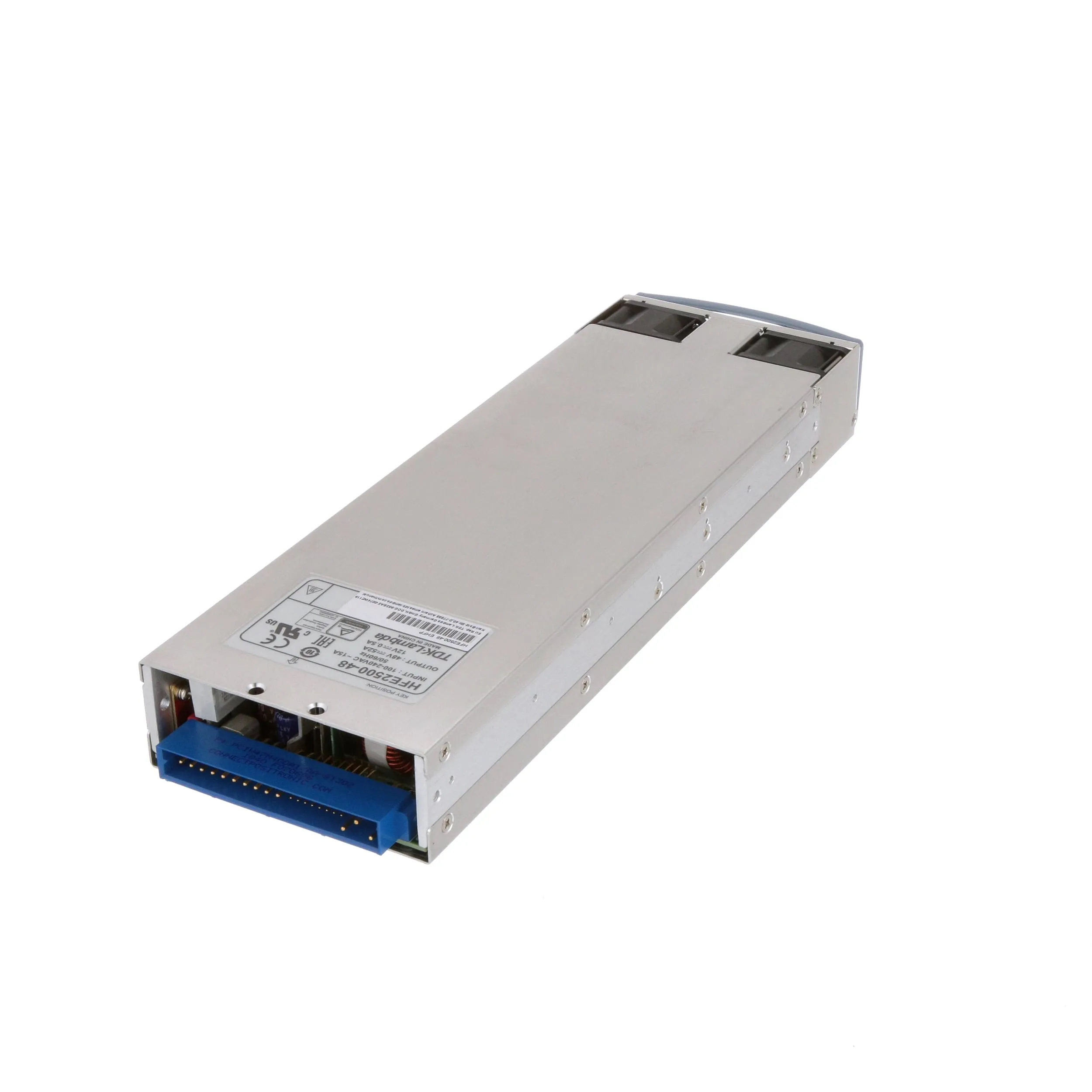

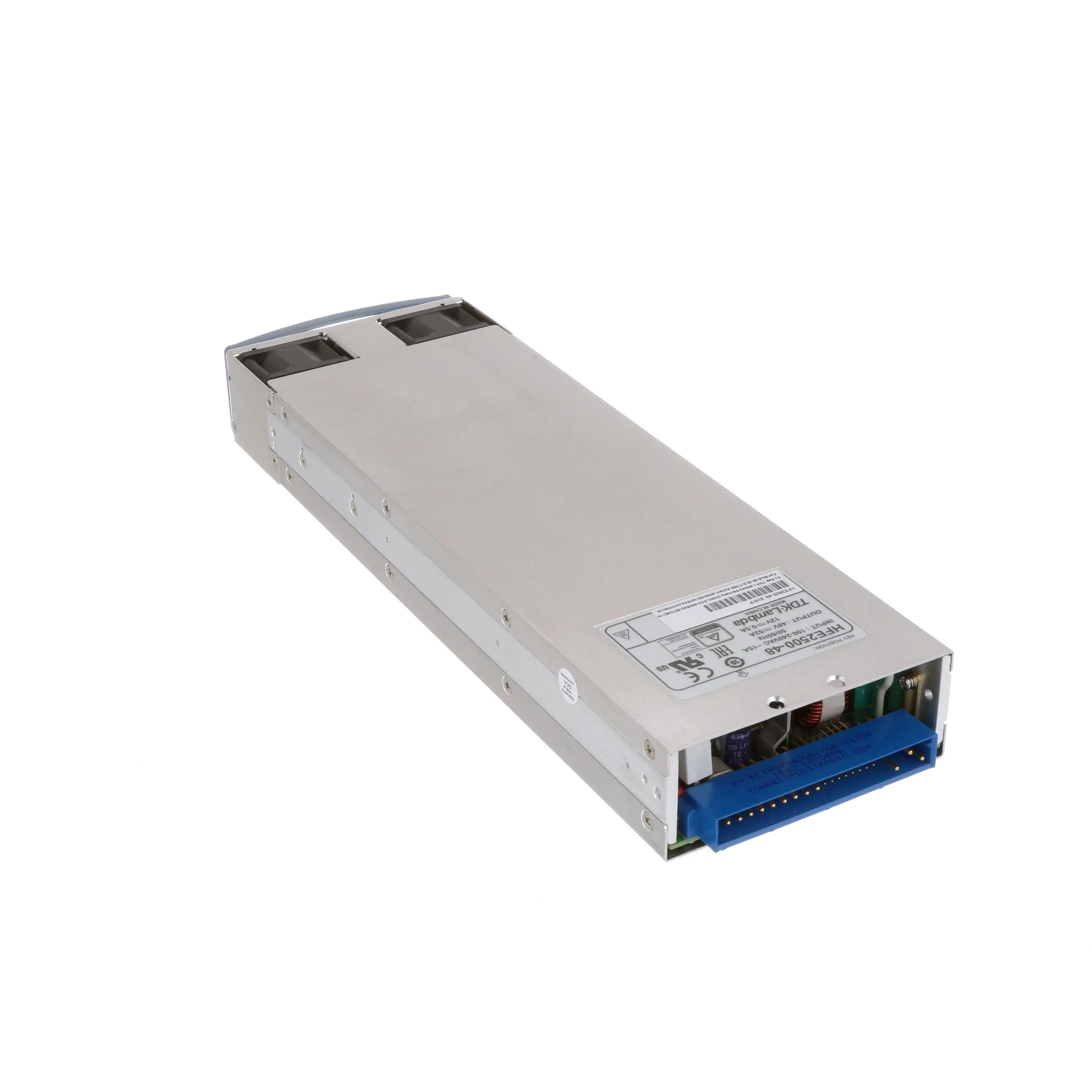

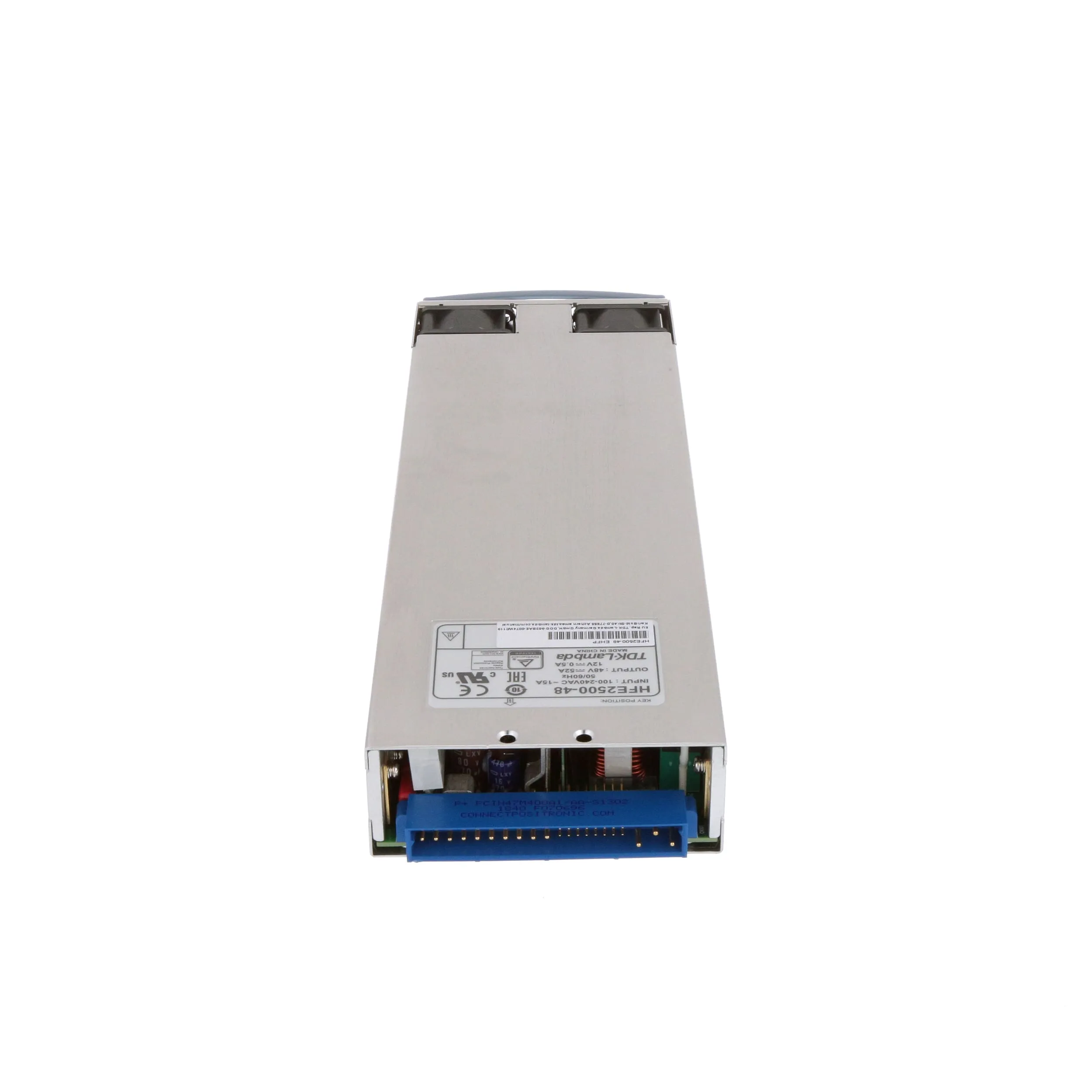

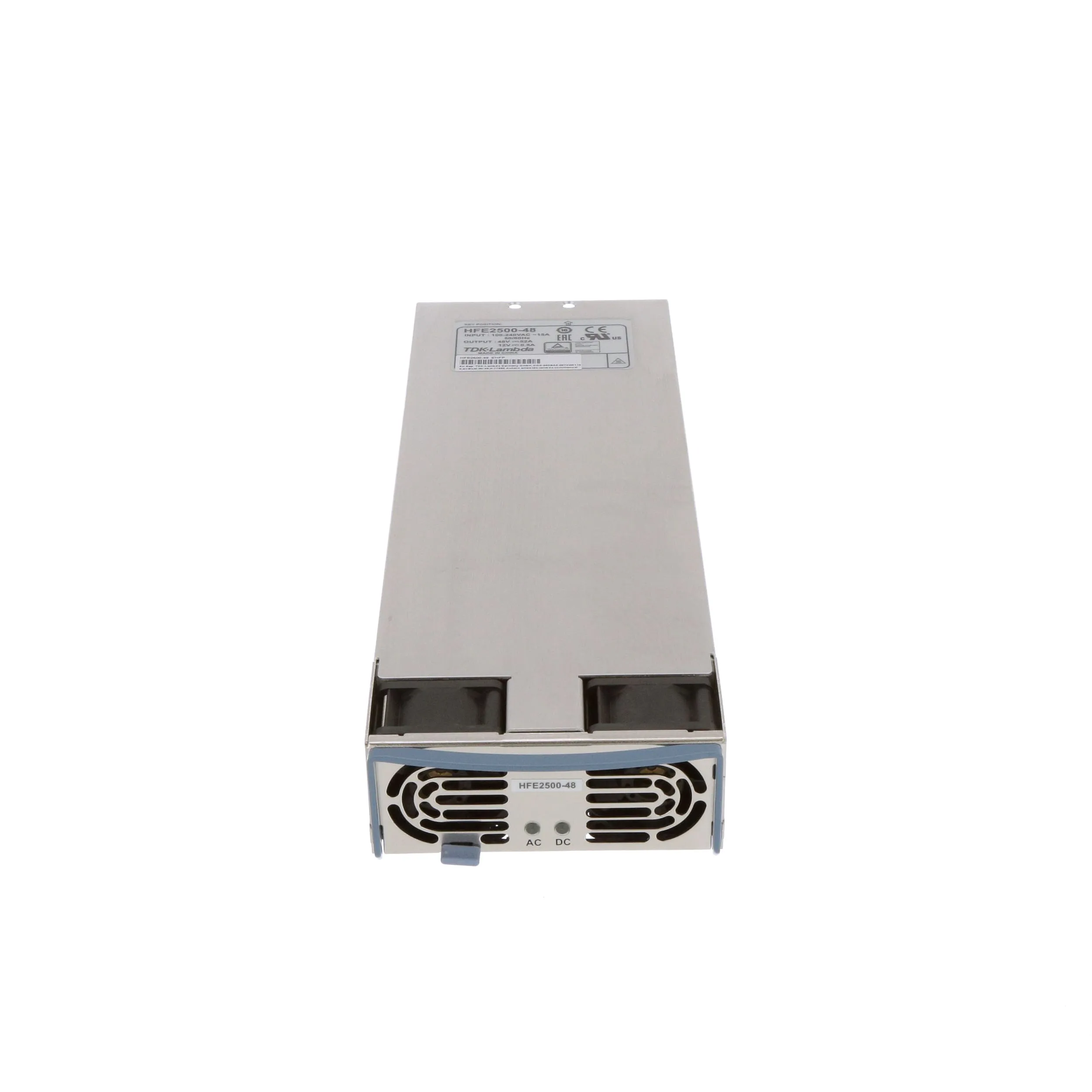

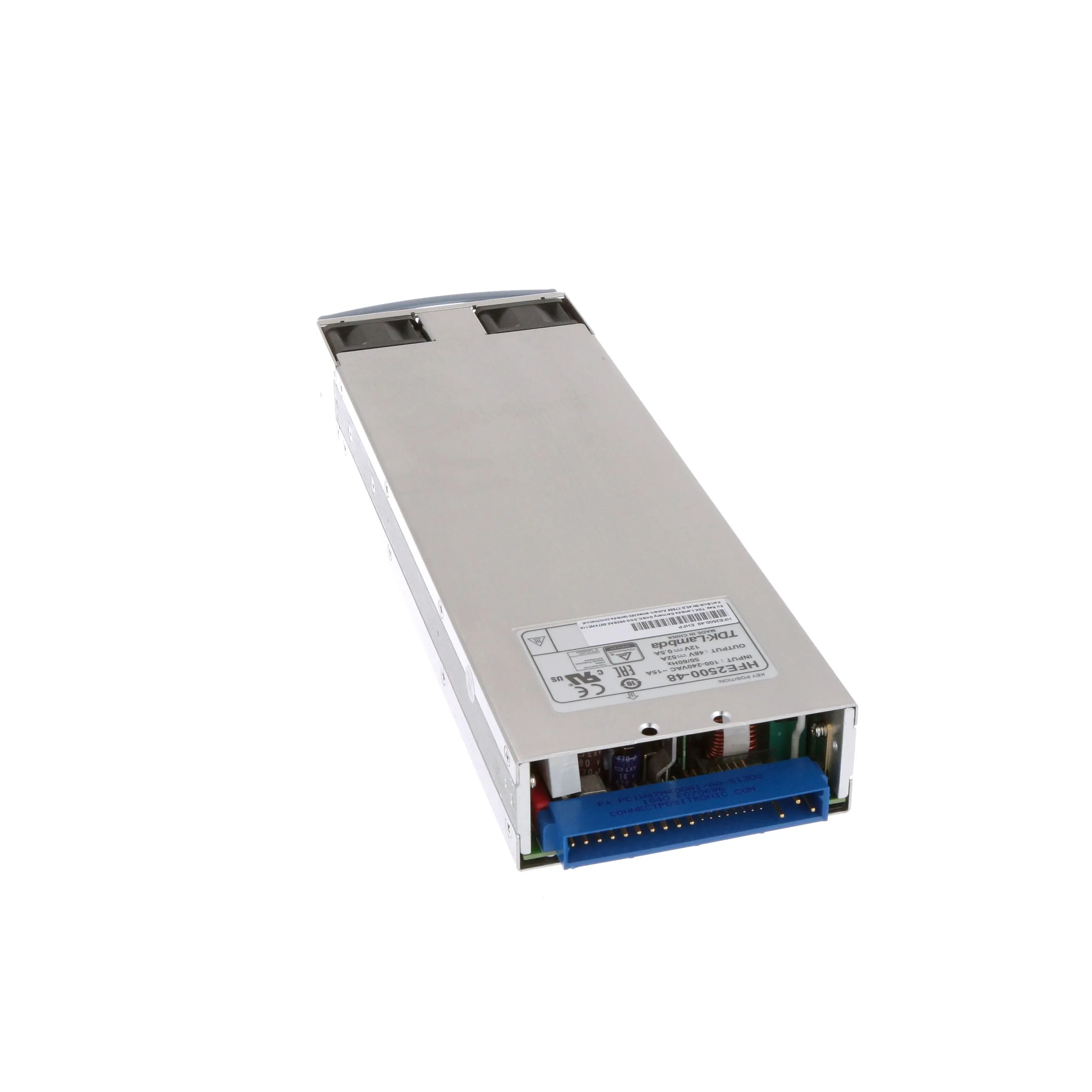

TDK Lambda HFE Series - 1600-2500W 1U Hot Swap Front-End Power Supply:
Developed as a standard series of high efficiency, hot-swap front end power supplies, the HFE is available in two power levels, 1600W and 2500W, and with output voltages of 12, 24, 32 and 48V. A number of 1U 19"" racks are available; a 5 slot version accepting HFE1600 modules, a 4 slot taking HFE2500 modules, plus a choice of IEC320 C20 sockets or screw terminals for the AC input. PMbus™ communication interface and LAN options can also be requested.
Features:
