Product Details
＋

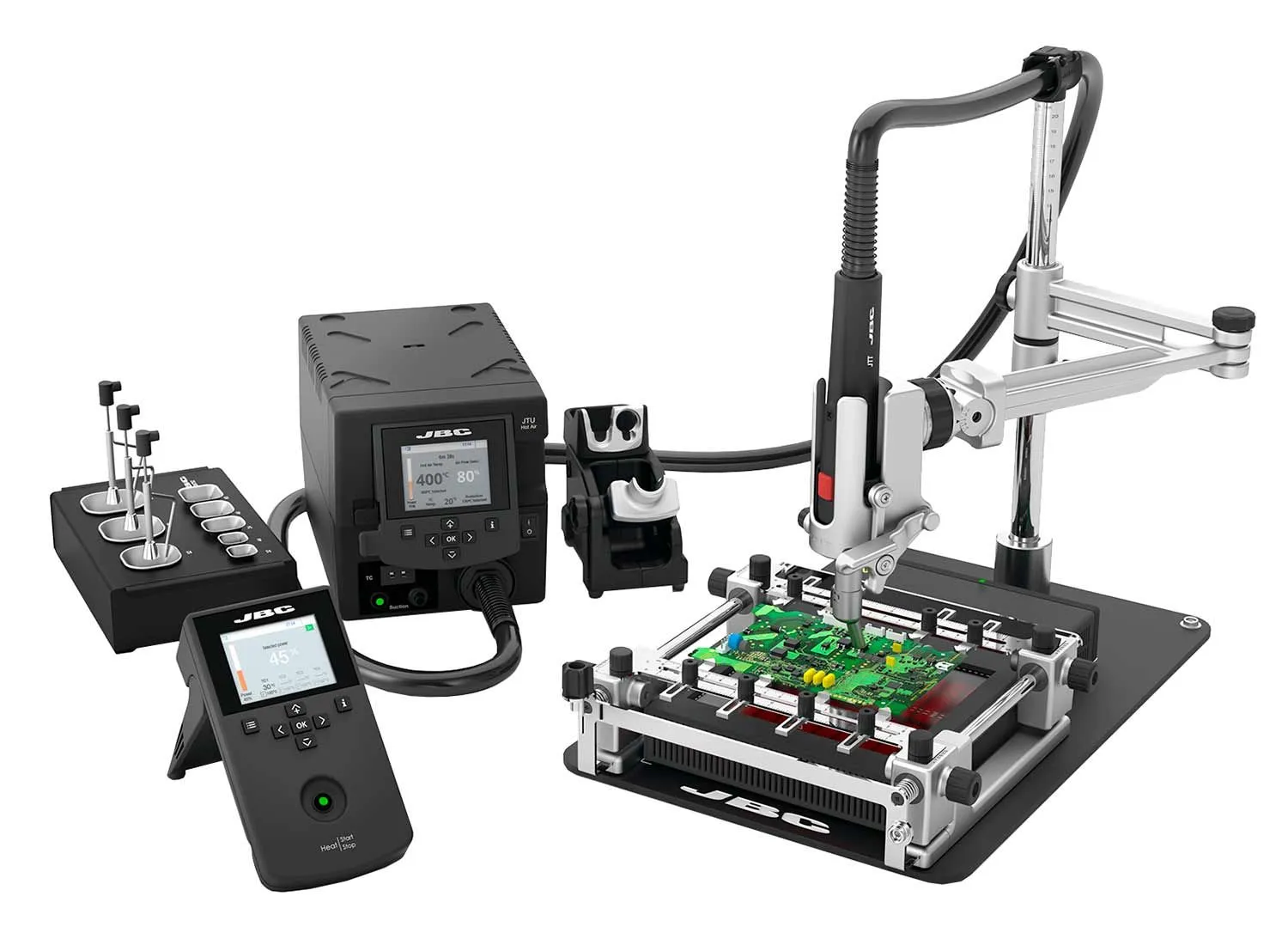

SRS SMD Rework System provides full control over SMD rework processes.
- JT Hot Air Station controls the rework task using temperature and air flow profiles.
- RWS Rework Arm supports the JTT Heater Hose Set, allowing handsfree operation.
- PHSK Small Preheater Set comes with PHS Small Preheater and PSS Small PCB Support.
- A variety of Protectors, Extractors and Tripods are included.
Product Includes
- (1) JT Hot Air Station
- (1) PHSK Small Preheater Set
- (1) RWS Rework Adjustable Arm for PHS
JT Hot Air Station Includes
- (1) Hot Air Control Unit
- (1) JTT Heater Hose Set
- (1) JTS Stand for JTT Heater Hose Set
- (1) ESHT Extractor Stand for Hot Air
- (1) E2052 Extractor 52 (20 x 20 mm)
- (1) E2064 Extractor 64 (20 x 26 mm)
- (1) E2184 Extractor 80 (24 x 24 mm)
- (1) P2220 Protector 32 (10 x 10 mm)
- (1) P2235 Protector 24 (12 x 17 mm)
- (1) P4000 Protector 44 (12.5 x 12.5 mm)
- (1) P2230 Protector 48 (15 x 15 mm)
- (1) P4010 Protector 60 (17 x 17 mm)
- (1) T2050 Tripod ø 39 mm
- (1) T2250 Tripod ø 85 mm
- (1) CU110 Cups for Extractors & Tripods
- (1) A2330 Suction Tube for Protectors & Extractors
- (1) JN2015 Bent Nozzle ø4 - 18° for JTT
- (1) JN2012 Bent Nozzle ø6 - 18° for JTT
- (1) JN2020 Straight Nozzle ø8 for JTT
- (1) PH218 Thermocouple Type K
Preheater Set Includes
- (1) Heater unit
- (1) Console
- (1) PSS Small PCB Support
- (2) PH218 Thermocouple Type K
- (1) PH217 Kapton Tape
Specifications
- Voltage: 120V
- ESD-safe: Yes
- Premium Stations Weight: 16.59 kg. / 36.57 lb.
- Premium Stations Dimensions:232 x 148 x 160 mm / 9.13 x 5.83 x 6.30 in
- Package Weight: 19.72 kg. / 43.48 lb.
- Package Dimensions: 700 x 410 x 390 mm / 27.56 x 16.14 x 15.35 in
JT Hot Air Station Specifications
- Selectable Temperature: 150 to 450ºC (300-840ºF)
- Air Flow: 5 to 50 SLPM
- Temperature Profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
- Operating Modes: Heating / Profiles / Cooling
- Vacuum: 30% / 228 mmHg / 9 inHg
Connectivity
- Type K Thermocouple:Can be used both for Control and Protection purposes.
- USB-B (rear): Software PC
- USB-A (front): Firmware update, Graphics / Profiles management
- Robot: RS-232 remote control
- Pedal: Optional tool control
- Equipotential bonding: Optional connection to EPA
- ESD/EOS / ESD-safe: Yes
Power Supply
- Nominal Power: 700 W
- Operating Temp. Range: 10 to 50ºC / 50 to 120ºF
Dimensions and Weight
- Premium Station Weight: 4.10 kg. / 10.86 lb.
- Premium Station Dimensions: 232 x 148 x 160 mm / 9.13 x 5.83 x 6.30 in
Small Preheater Set Specification
- Operating Temp. Range: 10 - 40ºC / 50 - 104ºF
- Temperature Range: 50 to 250ºC / 120 to 482ºF
- Heating Area: 65 x 135 mm / 2.6 x 5.3 in - 1 zone / 130 x 135 mm / 5.1 x 5.3 in - 2 zones
- Temperature Measurement: Thermocouple type K
- Maximum Power: 600W
- JBC-Set Temperature Profiles: 3 profiles ( 2, 3 or 4 steps)
- User Temperature Profiles: 22 (up to 6 steps for each)
- Maximum Work Time: 600 min. or indefinite
- Fuse: 8 A T (100V & 120V), 4 A T (230V)
- ESD/EOS / ESD-safe: Yes
- PreHeater Weight: 4.78 kg. / 10.54 lb.
- PreHeater Dimensions: 195 x 288 x 42 mm / 7.68 x 11.34 x 1.65 in
RWS Rework Adjustable Arm Specification
- Net Weight: 5.10 kg (11.24lb)
- Base Dimensions: 270 x 410 mm / 10.6 x 16.2 in
- Height: 386.5 mm / 15.2 in
- Arm Length: 444,5 mm / 17.5 in
- ESD-Safe Connector: Yes
- Package Dimensions: 474 x 368 x 195 mm / 18.66 x 14.49 x 7.68 in
- Package Weight: 5.70 kg. / 12.57 lb.
