Product Details
+
Product Attribute | Attribute Value |
---|---|
Alternate Mfr Part Number | XS-113-RS |
Connection Type | Wire Leads |
Insulation Color | Yellow/Blue |
Insulation Material | Fiberglass |
Jacket Color | Black |
Jacket Material | Stainless Steel |
Length, Wire | 6.56 ft (2m) |
Maximum Operating Temperature | 662 F (350 C) |
Minimum Operating Temperature | -76 F (-60 C) |
Shop By | Factory Choice |
Thermocouple Type | Type J |
UPC Code | 5056070947474 |
Warranty | 3 Year Warranty |
Wire Size | 7/0.2 (0.219mm2) |
Overview

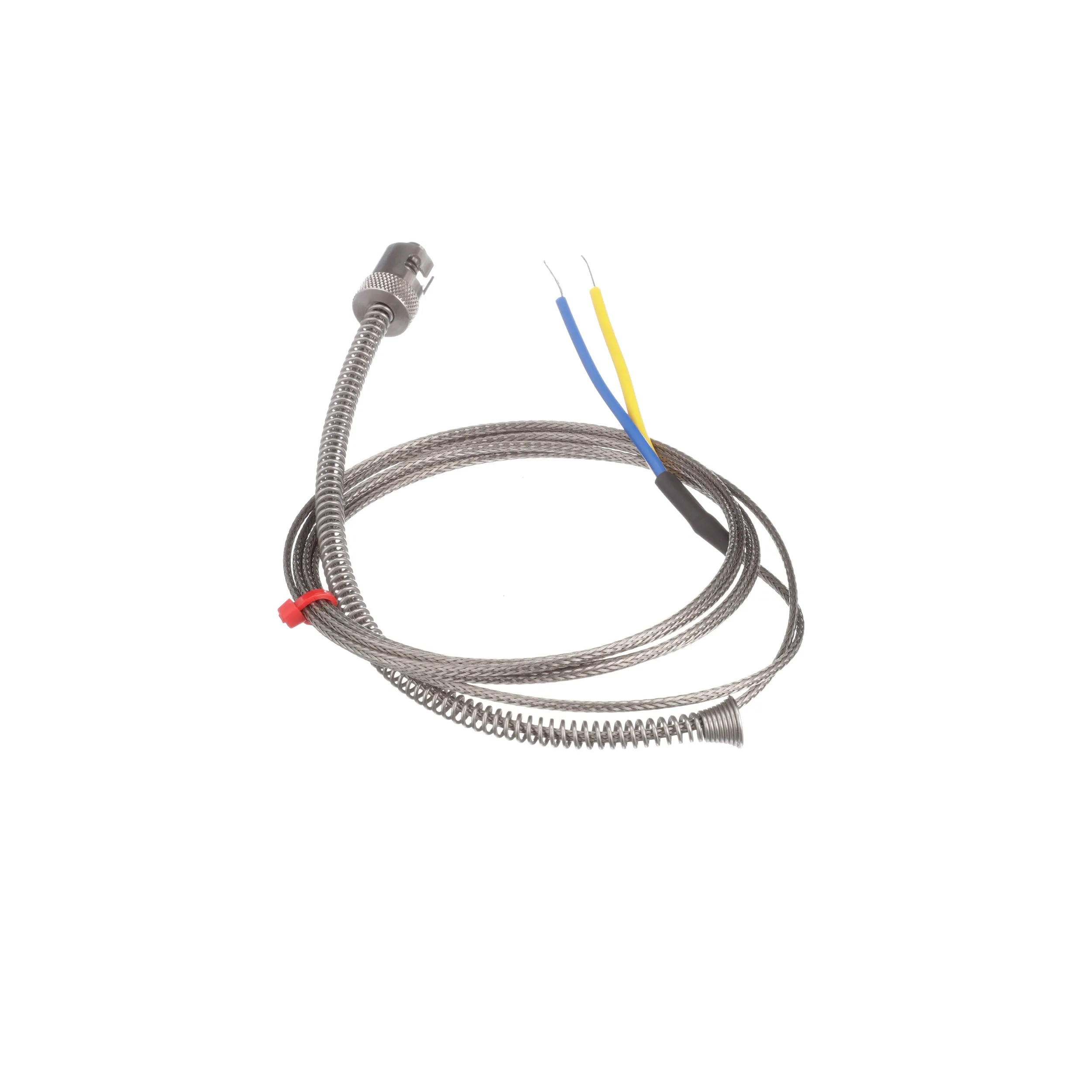

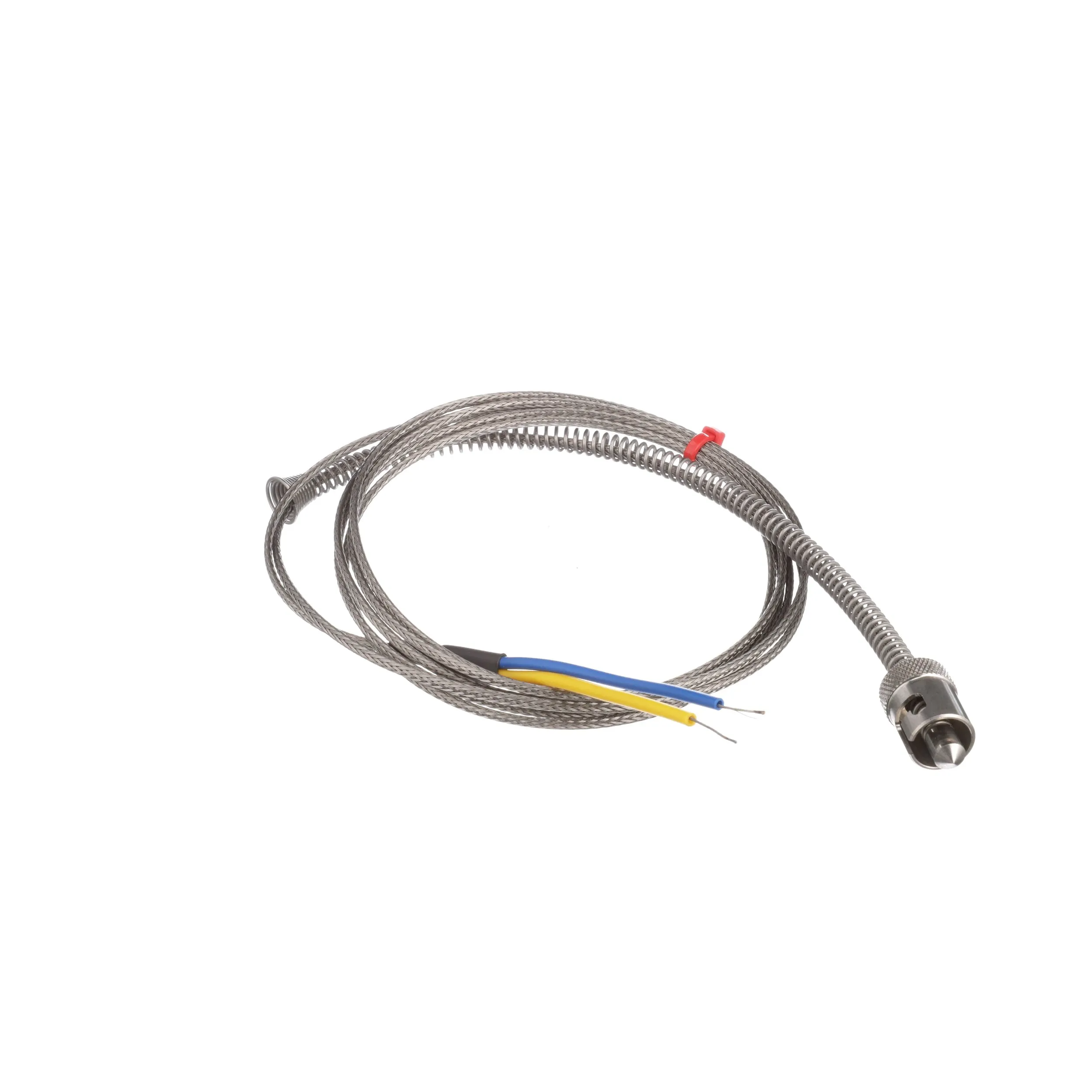

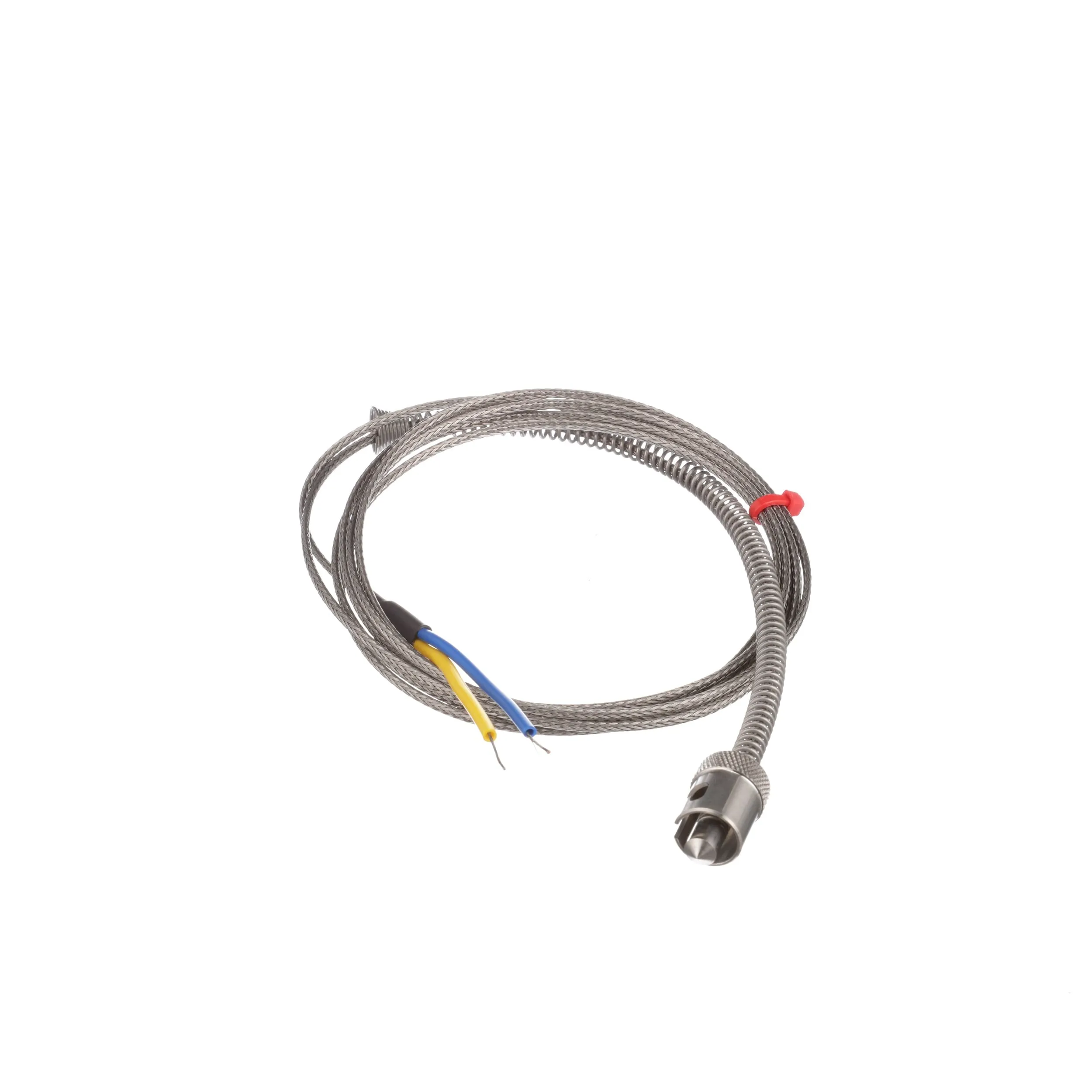

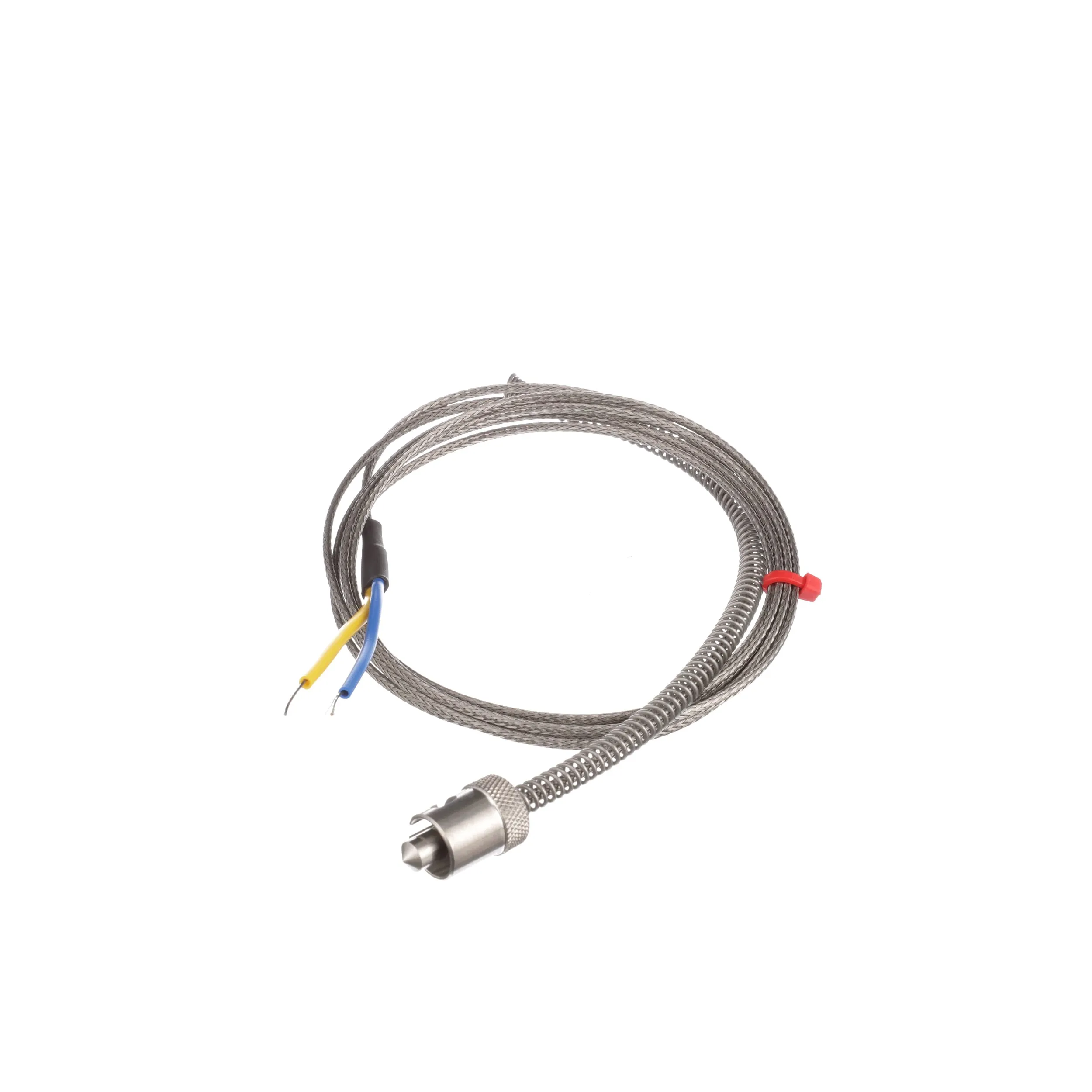

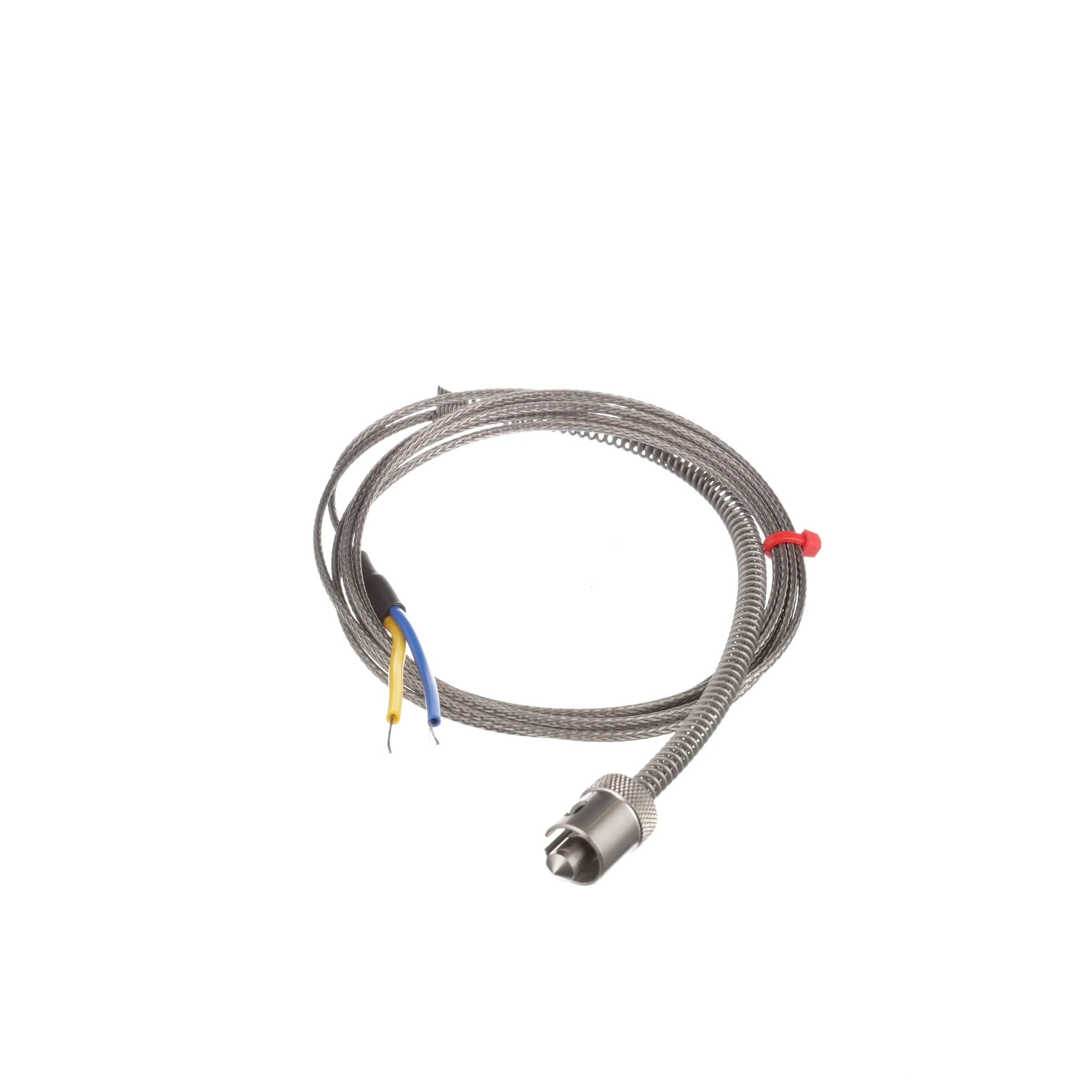

Type J Bayonet
Bayonet cap: 2m of wire fitted with 170mm spring cable protection, adjustable fixing cap and male bayonet adaptor.
