Product Details ＋

Renogy 400 Watt 12 Volt Complete Solar Kit

This complete solar kit can be used for many reasons; the main power source for a Van/Rv/Skoolie, trickle charging batteries or even acting as an emergency power backup system. Each Solar Panel comes with a 25 year performance and 10 year materials warranty, meaning that your panels are designed to last for many years.

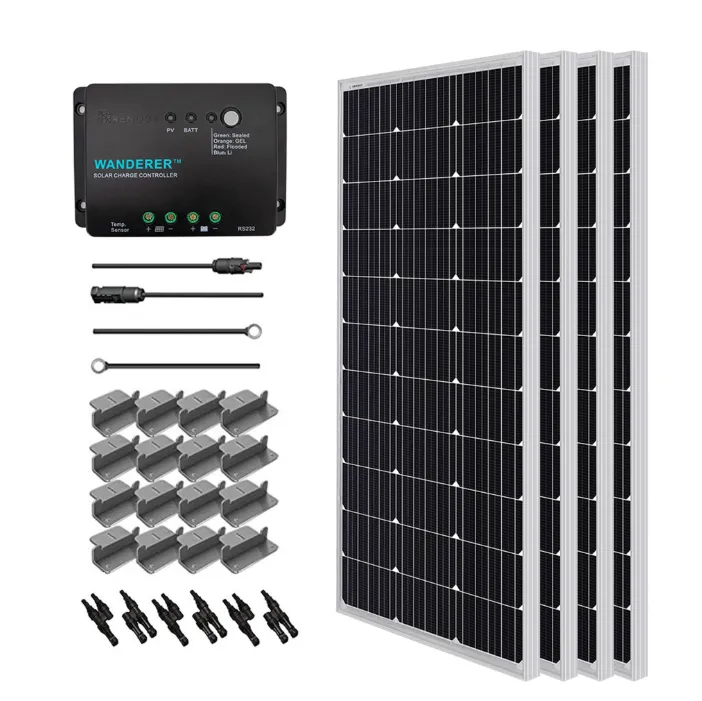

Your Order Includes:

(4) x 100 Watt 12 Volt Mono Solar Panels
(3) x Branch Connectors
(1) x Wandered 30 Amp Charge Controller
(4) x Z Mounting Brackets for Solar Panels
(1) x Set of 20 ft 10 AWG MC4 Adapter Kit
(1) x Set of 8ft 10 AWG Tray Cables
25 Year Output Warranty on Panel
5 Year Material and Workmanship Warranty
1 Year material warranty for accessories
Free Shipping
Lifetime customer support

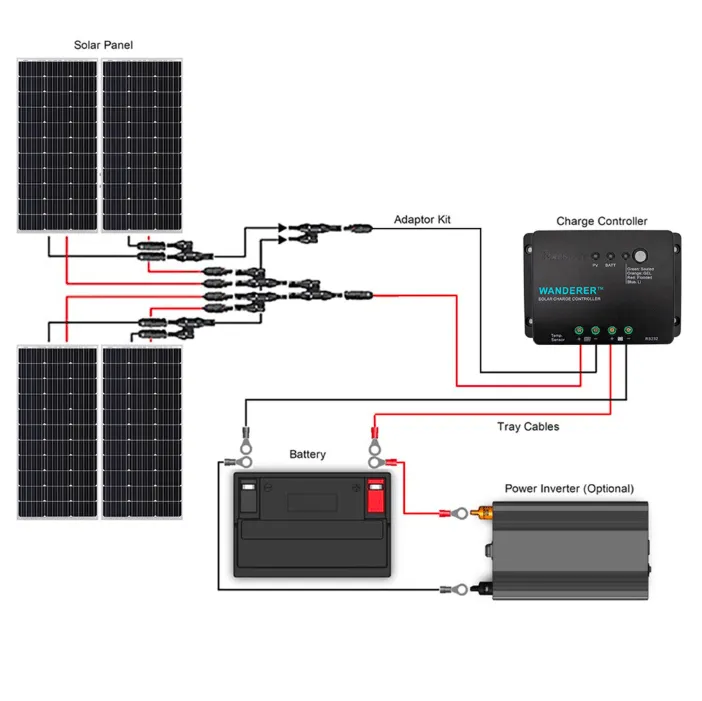

This 400W Monocrystalline Starter Kit was created for customers new to solar, or for those looking to expand on an existing power system. The Starter Kit is also ideal for several off-grid applications, including RVs, trailers, boats, sheds, and cabins — providing many benefits, including, but not limited to, quiet power production and grid independence. This kit comes with the tools necessary for a new system: four , one 30A PWM Wanderer Li Charge Controller, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 10AWG Tray Cable, three pairs of branch connectors, and four sets of Z-brackets. Add convenience and peace of mind to your next journey with a Renogy Starter Kit.

KEY FEATURES

Efficient

High solar cell efficiency : Monocrystalline 21%

Reliable

EL tested solar modules; no hot-spot heating guaranteed
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
TPT back sheet ensures smooth performance over a long period of time
IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

Intuitive

Sealed, Gel Flooded and Lithium charging algorithm ready
4-Stage battery charging process for a rapid, efficient, and safe battery charging

Safe

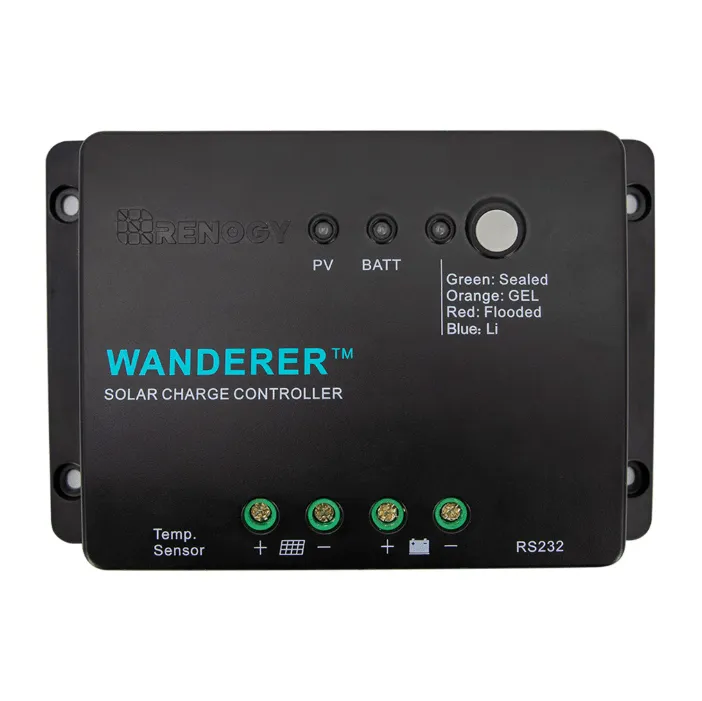

The Renogy Wanderer Li is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
Pre-drilled holes on the back of the panel allow for fast and secure mounting

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W	Maximum System Voltage:600V DC (UL)
Open-Circuit Voltage (Voc): 21.6V	Short-Circuit Current (Isc): 6.24A
Optimum Operating Voltage (Vmp): 17.9V	Optimum Operating Current (Imp): 5.72A
Dimensions: 42.2 X 19.6 X 1.38 inches	Weight: 16.5lbs

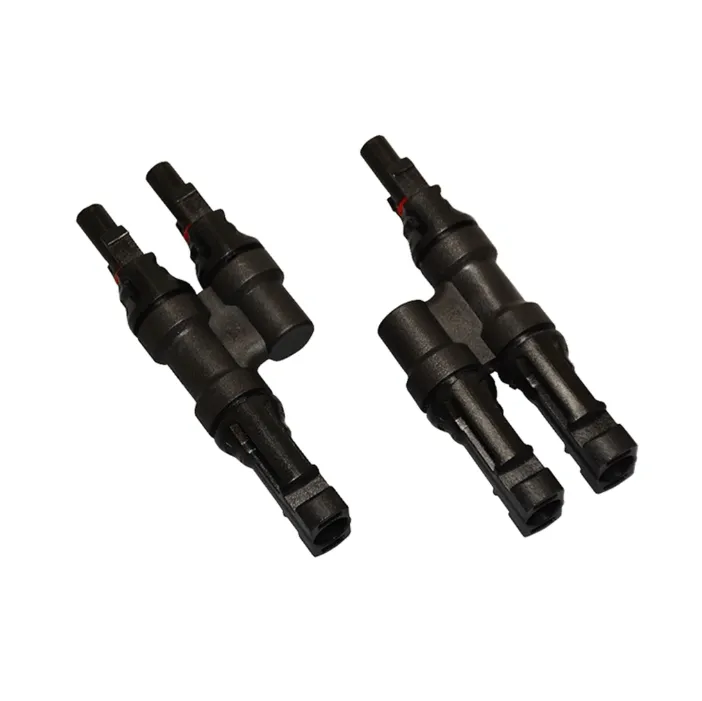

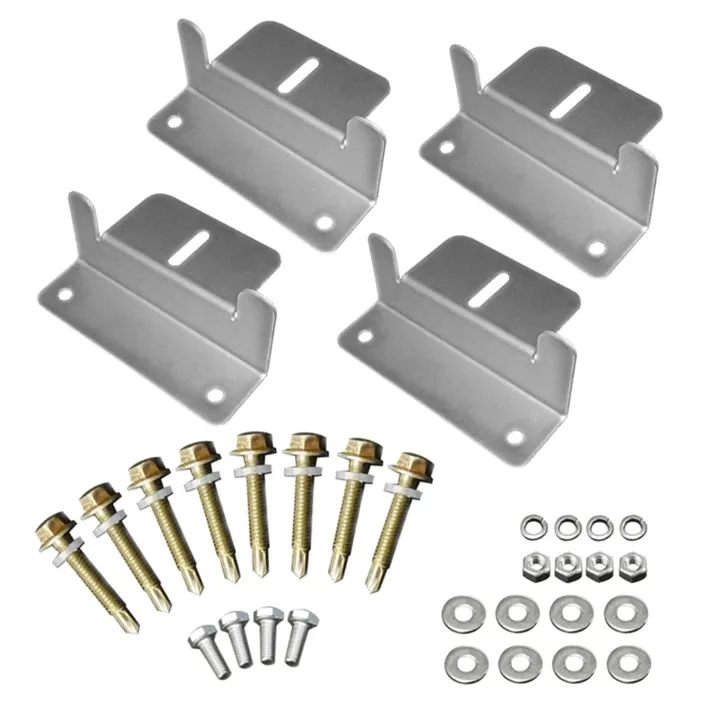

RENOGY MC4 BRANCH CONNECTORS	MOUNTING Z BRACKETS (SET)
Withstanding Voltage: 1000V DC(TUV), 600V(UL)	Eight Long Cap Bolts and Four Short Bolts
Protection Degree: IP67, mated	Four Spring Washers and Four Washers
Wiring Size Range: 10, 12, 14 AWG	Four Z Shape Solar Panel Brackets
Temperature: -40°F to 195°F	Four Nuts

RENOGY ADAPTOR KIT (SET)	RENOGY 8FT 10AWG TRAY CABLES (A PAIR)
Length: 20ft	Length: 8ft
AWG: 10	AWG: 10
Rating Voltage: 600/1000V	Rating Voltage: 600/1000V
Temperature: -40°F to 185°F	Temperature: -40°F to 185°F

WARRANTY INFORMATION

Panels	25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty
Accessories	1-year material warranty
