Product Details
＋
100 Watt 12V Mono, 30A Charge Controller Solar Panel Kit (Best Seller!)
This 100W Solar Power Starter Kit is perfect for new customers wanting to get a start in solar. The Starter Kit is great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins — providing many benefits, including, but not limited to, quiet power production and grid independence.

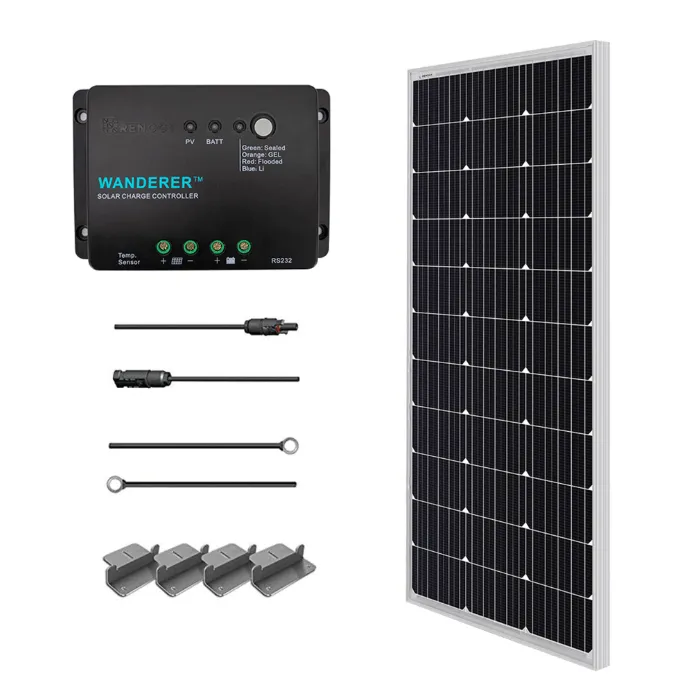

Your 100 Watt DIY Solar Kit Order Includes:
- (1) x 100 Watt 12 Volt Mono Solar Panel
- (1) x 30 Amp Wanderer Li Charge Controller
- (1) x 20ft 10 AWG MC4 Adapter Kit
- (1) x 8ft 10 AWG Tray Cable
- (1) Full Set of Z mounting brackets
- 25 Year Output Warranty on Panel
- 5 Year Material and Workmanship Warranty
- 1 Year material warranty for accessories
- Free Shipping
- Lifetime customer support
100 Watt DIY Solar Kit Benefits:
Efficient
- High solar cell efficiency : Monocrystalline 21%
Reliable
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
- Sealed, Gel Flooded and Lithium charging algorithm ready
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
Safe
- The Renogy Wanderer is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
Expandable
- With the Renogy Wanderer Li 30A PWM Charge Controller, you can expand your system up to a maximum of 400W. The is the perfect solution for future expansion
100 Watt DIY Solar Kit Specs:

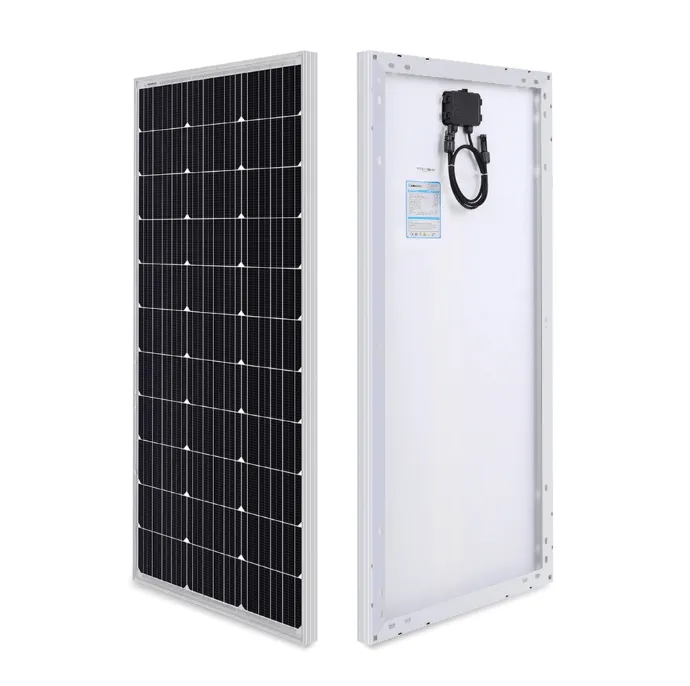

| 100W MONOCRYSTALLINE SOLAR PANEL | |
|---|---|
| Maximum Power: 100W | Maximum System Voltage:600V DC (UL) |
| Open-Circuit Voltage (Voc): 21.6V | Short-Circuit Current (Isc): 6.24A |
| Optimum Operating Voltage (Vmp): 17.9V | Optimum Operating Current (Imp): 5.72A |
| Weight: 16.5lbs | Dimensions: 42.2 X 19.6 X 1.38 inches |

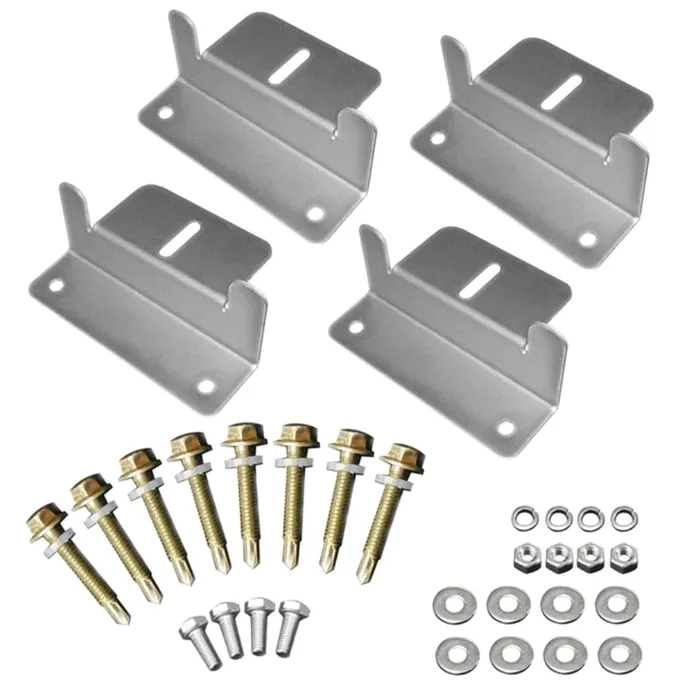

| 8FT 10AWG TRAY CABLES (A PAIR) | MOUNTING Z BRACKETS (SET) |
|---|---|
| Length: 8ft | Eight Long Cap Bolts and Four Short Bolts |
| AWG: 10 | Four Spring Washers and Four Washers |
| Rating Voltage: 600/1000V | Four Z Shape Solar Panel Brackets |
| Temperature: -40°F to 185°F | Four Nuts |

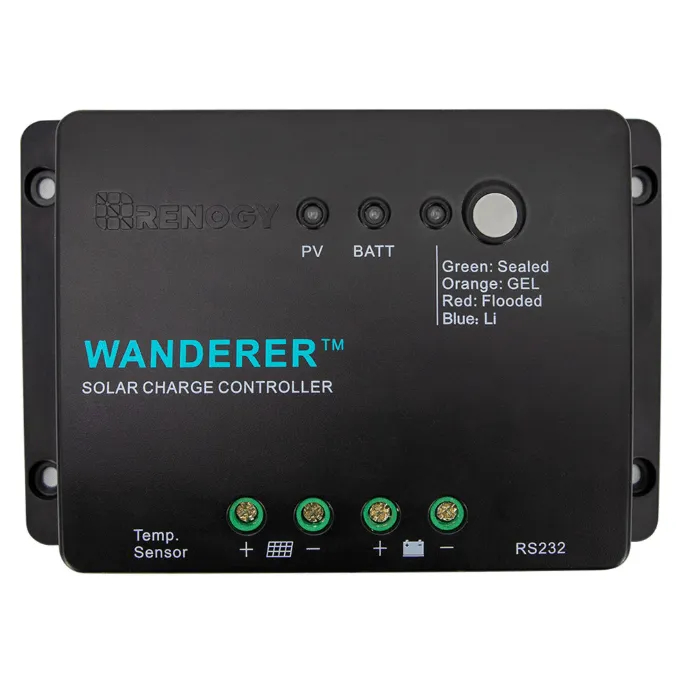

| RADAPTOR KIT (SET) | WANDERER LI- 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER |
|---|---|
| Length: 20ft | Nominal Voltage: 12 VDC |
| AWG: 10 | Rated Charge Current: 30A |
| Rating Voltage: 600/1000V | Max. PV Input Voltage: 25 VDC |
| Temperature: -40°F to 185°F | Max. PV Input Power: 400W (12V) |
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
