Product Details
+

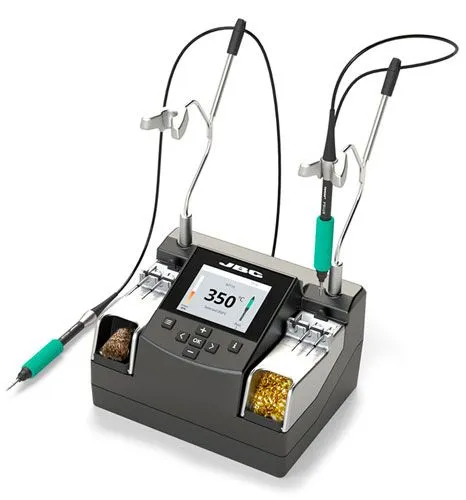

Designed for highest precision applications offering maximum control working under microscope. It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint.
- Provides the best soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer.
- Complete Cleaning System with an integrated wiper and brush to keep the work area clean and remove excess solder from the tip.
- Cartridge Holder and Exclusive Cartridge Extractor, that facilitates fast and safe cartridge changes.
- Possible connection to the JBC Fume Extractor (connector RJ12).
- Connectivity: data's download, software updates, traceability.
- Includes two NT115 Nano Handle that works with our C115 Cartridge Range.
- For Rework of SMT components requiring the highest precision.
- Product comes complete with tips.
Product Includes
- (1) NAU 2-Tool Nano Control Unit
- (2) NT115 Nano Handle
- (1) C115101 Conical ø 0.1
- (1) C115103 Conical ø 0.3 S1
- (2) C115105 Conical Bent ø 0.3
- (1) C115107 Conical ø 0.8
- (1) C115112 Knife 2.5 x 0.3
- (2) C115113 Chisel 1 x 0.3
- (1) P405 Pedal
Specifications
- Peak Power: 14W per tool
- Temperature Range: 90 - 450 deg;C / 190 - 840°F
- Idle Temp. Stability (still air): ±1.5 °C / ±3 °F (meets and exceed IPC J-STD-001F)
- Tip to Ground Resistance: < 2 ohms
- Tip to Ground Voltage: < 2 mV RMS
- Operating Temp. Range: 10 - 50°C / 50 - 122°F
- ESD-Safe: Yes
Connectivity
- Pedal (1 per tool): Connect a pedal (ref.P405) to control the tools. It allows using Nano tweezers for soldering
- USB-B (rear): Software PC / Traceability
- USB-A (front): Firmware update Soldering Graphics management
- Robot: RS-232 remote control or Smart Fume Extractor connection.
- Equipotential Bonding: Optional connection to EPA
- Nano Stations Weight: 2.45 kg. / 5.40 lb.
- Nano Stations Dimensions: 140 x 170 x 125 mm / 5.51 x 6.69 x 4.92 in
- Package Weight: 2.94 kg. / 6.49 lb.
- Package Dimensions: 295 x 240 x 305 mm / 11.61 x 9.45 x 12.01 in
