Product Details
＋
WSS is specially designed for stripping wire insulations made of thermostable materials such as Teflon*, Kapton*, silicone rubber, etc., from 40 to 14 AWG (0.08 to 1.63 mm / 0.0031 to 0.0642 in) temperatures up to 800°C / 1470°F.
- WSS incorporates predeterminate power levels for each type of material. In addition, it features a customized working mode.
- This station comes with the comfortable WS140 Precision Tweezers and it is compatible with W140 Blade Cartridge Range.
- From 40 to 14 AWG.

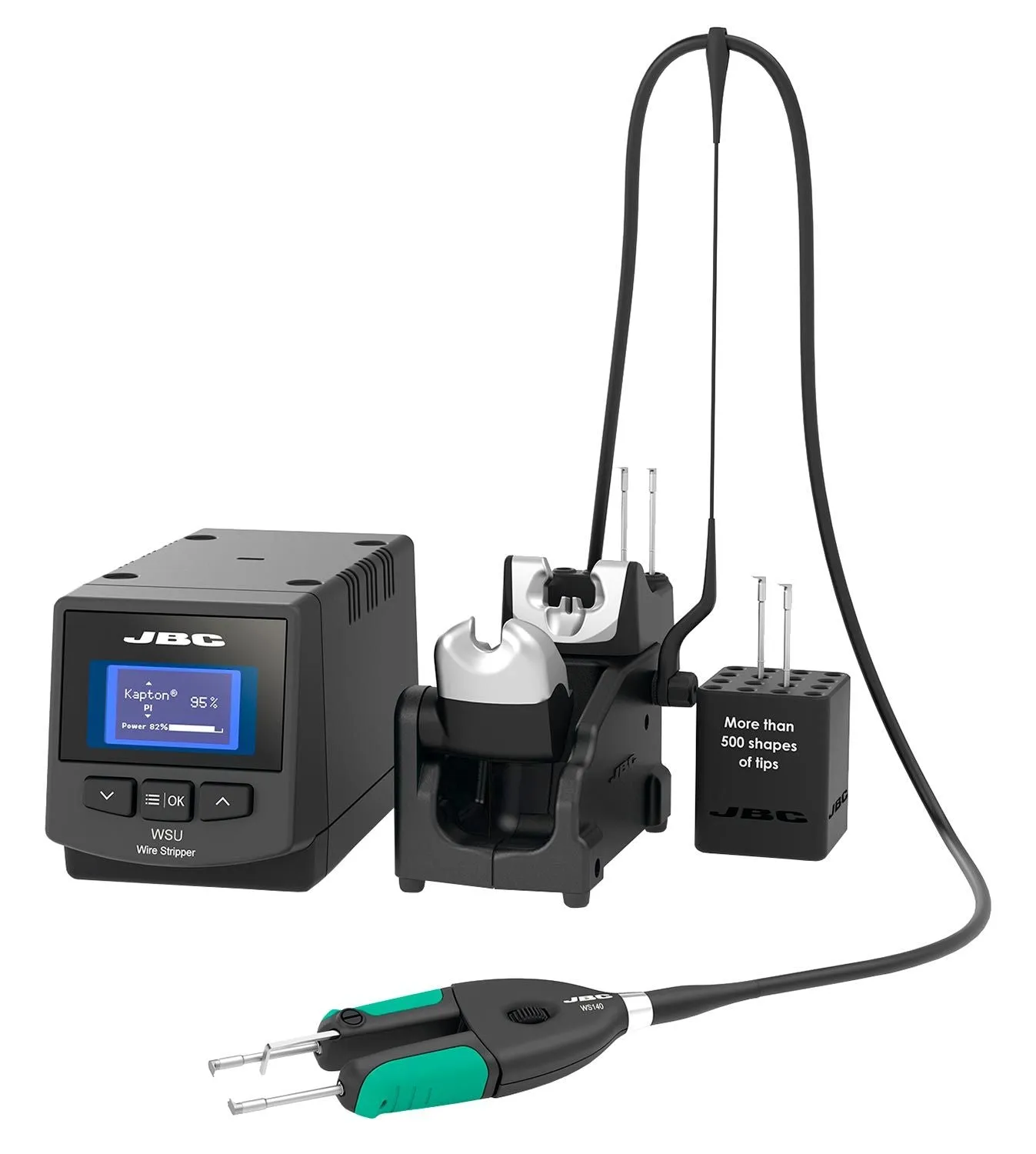

Product Includes
- (1) WSU Wire Stripper Control Unit
- (1) WSST Stand for WS140
- (1) WS140 High-Temperature Precision Wire Stripper Tweezers
- (1) SCH Cartridge Holder
- (1) PLR195 Cartridge Extractor Plier
Specifications
- ESD-Safe: Yes
- Power Supply Max. Temperature: 800 °C / 1470 °F
- Power Supply Peak Power: 75W
- Operating Temp. Range: 10 to 50 °C / 50 to 120 °F
- Connectivity USB-B (front): Firmware upgrade
- Equipotential Bonding: Optional connection to EPA
- Premium Stations Dimensions: 180 x 94 x 106 mm / 7.09 x 3.70 x 4.17 in
- Premium Stations Weight: 3.80 kg. / 8.39 lb.
- Package Dimensions: 368 x 368 x 195 mm / 14.49 x 14.49 x 7.68 in
- Package Weight: 4.63 kg. / 10.20 lb.
