Film lighting LED tube for TV and broadcasting

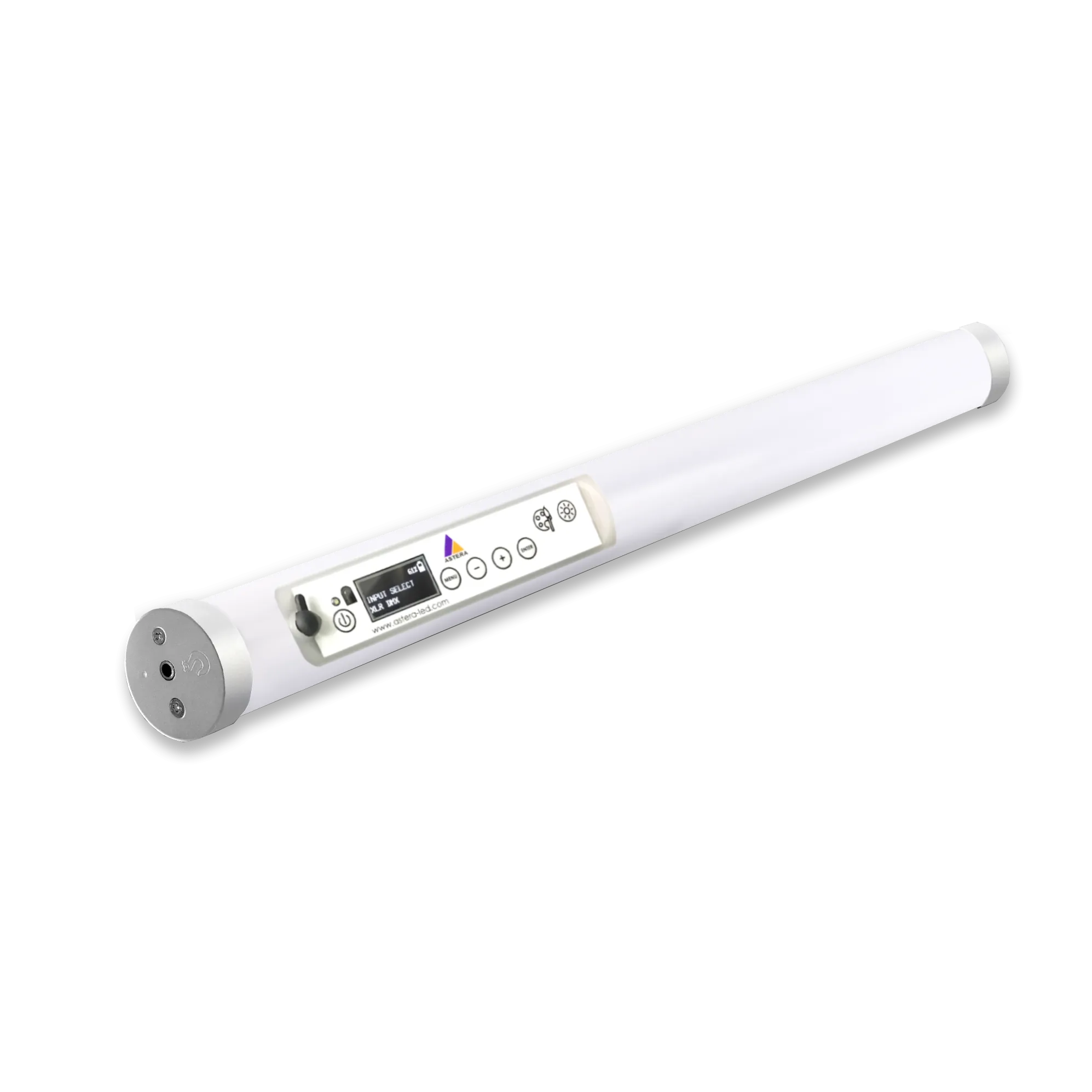

Helios Tube is an RGB – Amber – Mint LED lighting Tube that has all the features of the popular Titan Tube while offering a smaller format. It allows mounting in areas where a Titan Tube wouldn’t fit and also increases portability. This LED lighting Tube has 8 pixels, half the brightness of the Titan tube and just over half its length. Colors and brightness are perfectly matched to those of the Titan Tube`s.

INCLUDES:

• Stand
• 2 X Eye Bolts
• 2 X Holders

SPECIFICATIONS

55cm
36W power, 8 pixel segments, 180° beam angle,
IR, App controlled, wired and wireless (CRMX) DMX,
built-in rechargeable LG battery, IP65.
Includes stand, 2 eye bolts, 2 holders.

*Does not include AC Power Adapter

Optical

Colors: Red, Green, Blue, Mint, Amber
Total LED power: 36W
Maximum power draw: 24W
TLCI: ≥96
CRI: ≥96
Luminous flux: 1340Lm
Emittance @1m: 393Lx
Strobe: 0-25Hz
Beam Angle: 120˚
Field Angle: 180˚
Pixels: 8

Construction

Housing: Polycarbonate, metal endcap
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 0.765kg | 1.68Lbs
Dimensions: Ø42 x 550mm | Ø1.6” x H22.7”

Electrical

Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
Charging time (nominal): 3 Hours
Input Voltage : 24V 1.25A

Control

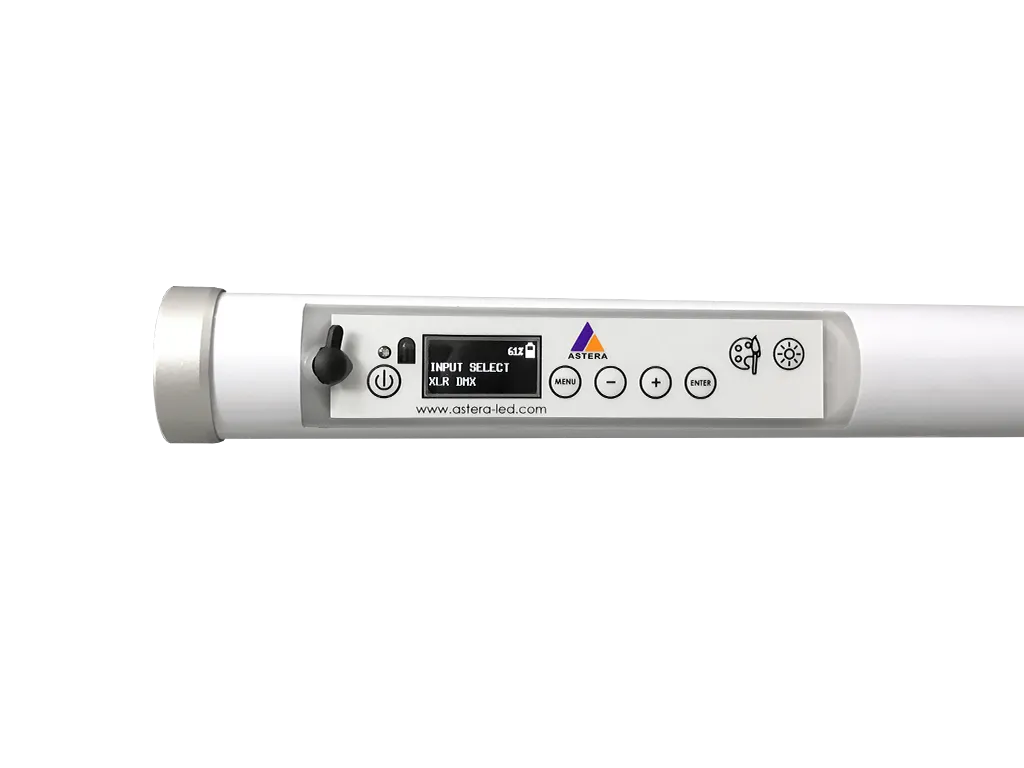

Backside Display with HSI control
Infrared
Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
Wired DMX: supported via Astera PowerBox
Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical
