Name: Game Boy Advance CleanJuice (V1.3) Li-Ion Rechargeable Battery Module - RetroSix
SKU: 1084798

Product Details ＋

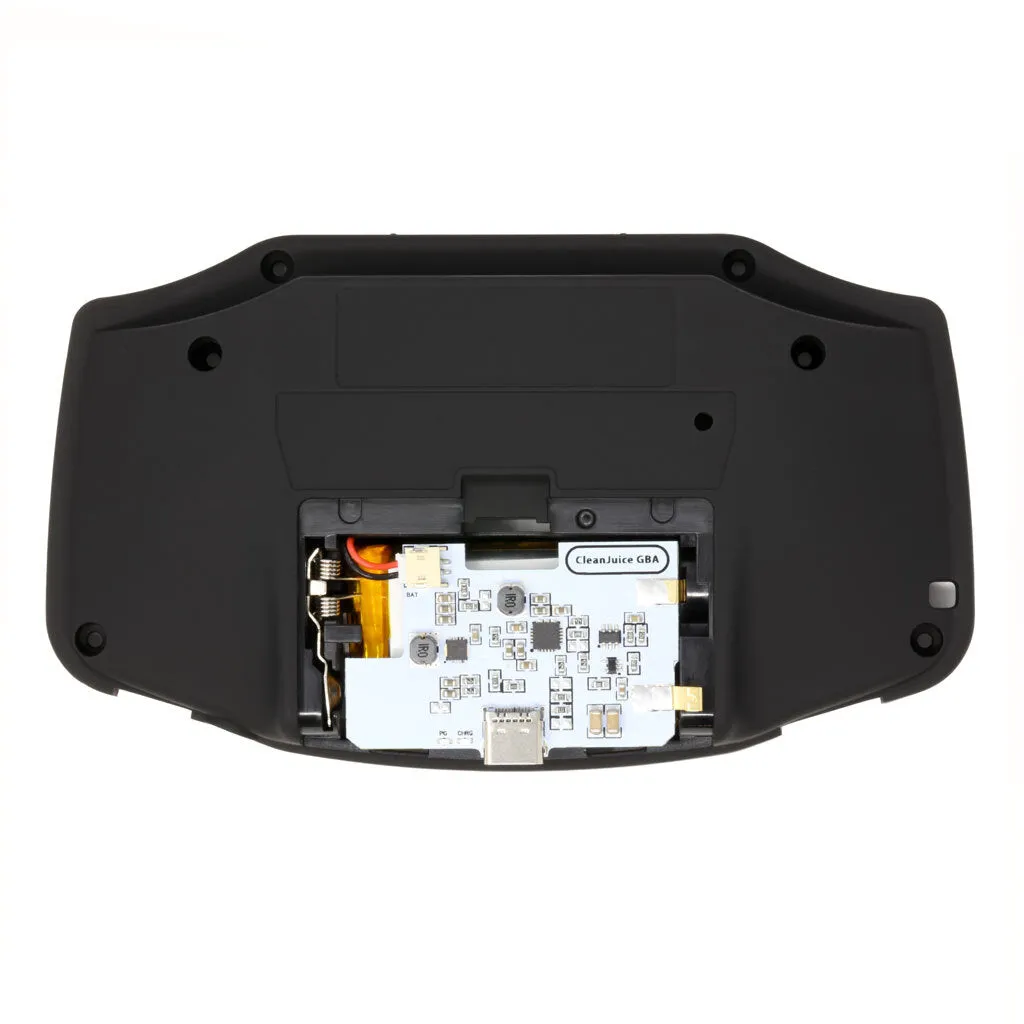

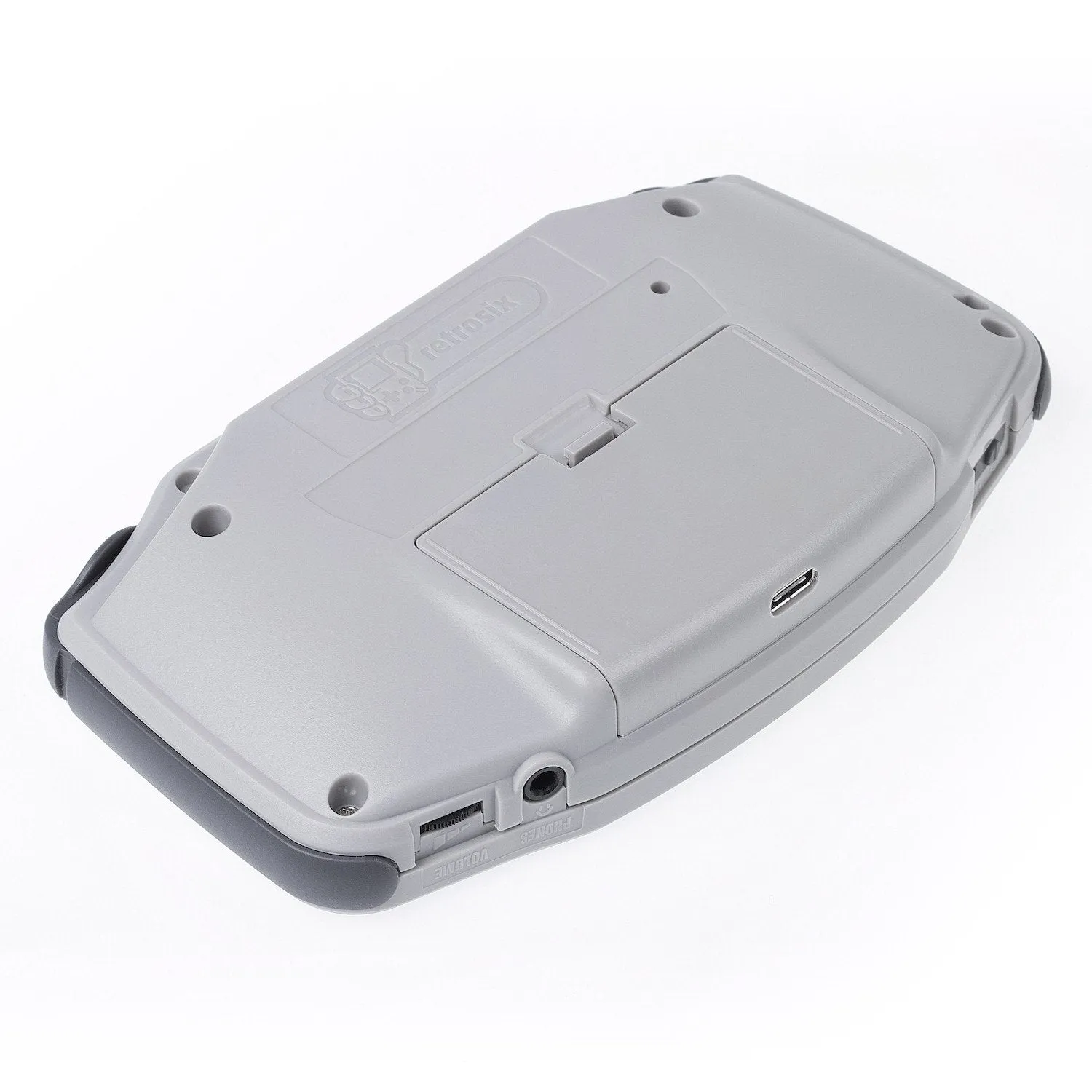

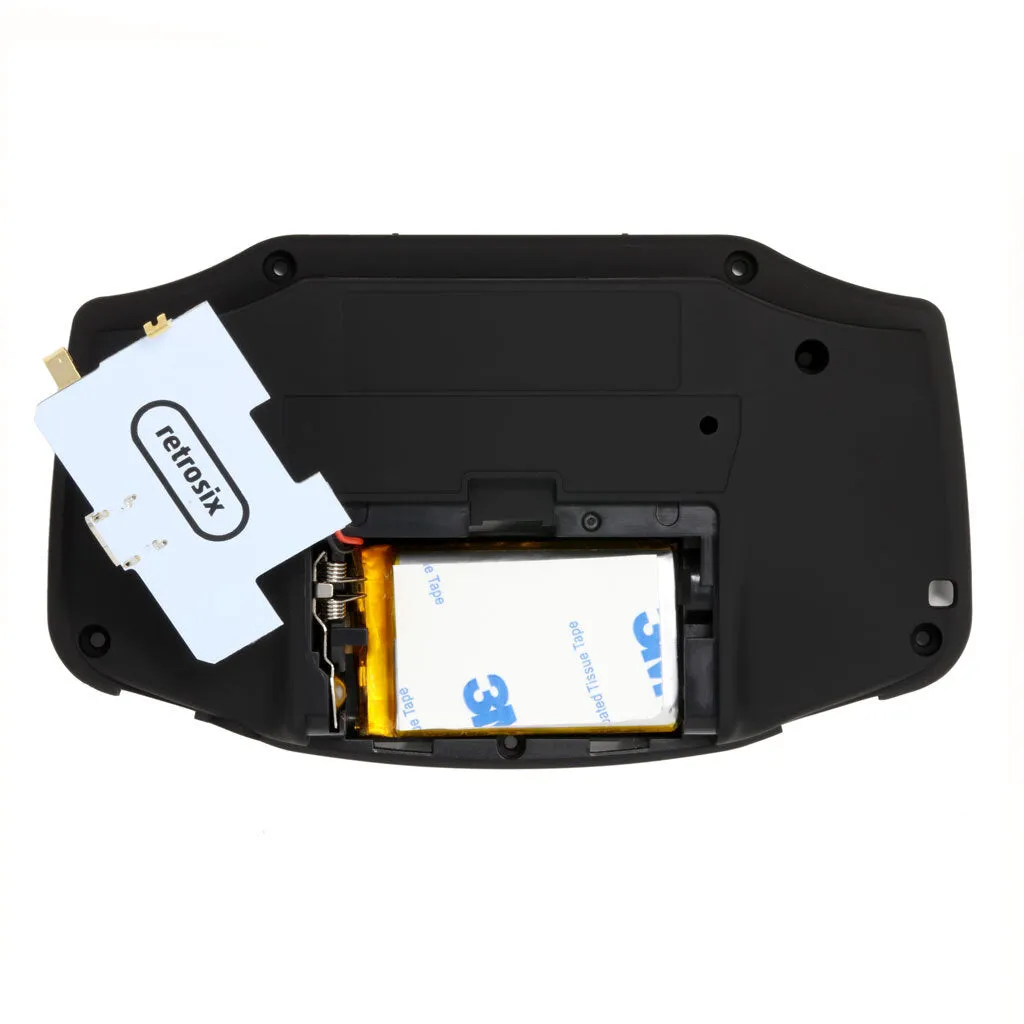

Upgrade your Game Boy Advance from its low powered AA battery compartment to a drop-in USB-C rechargeable battery pack.

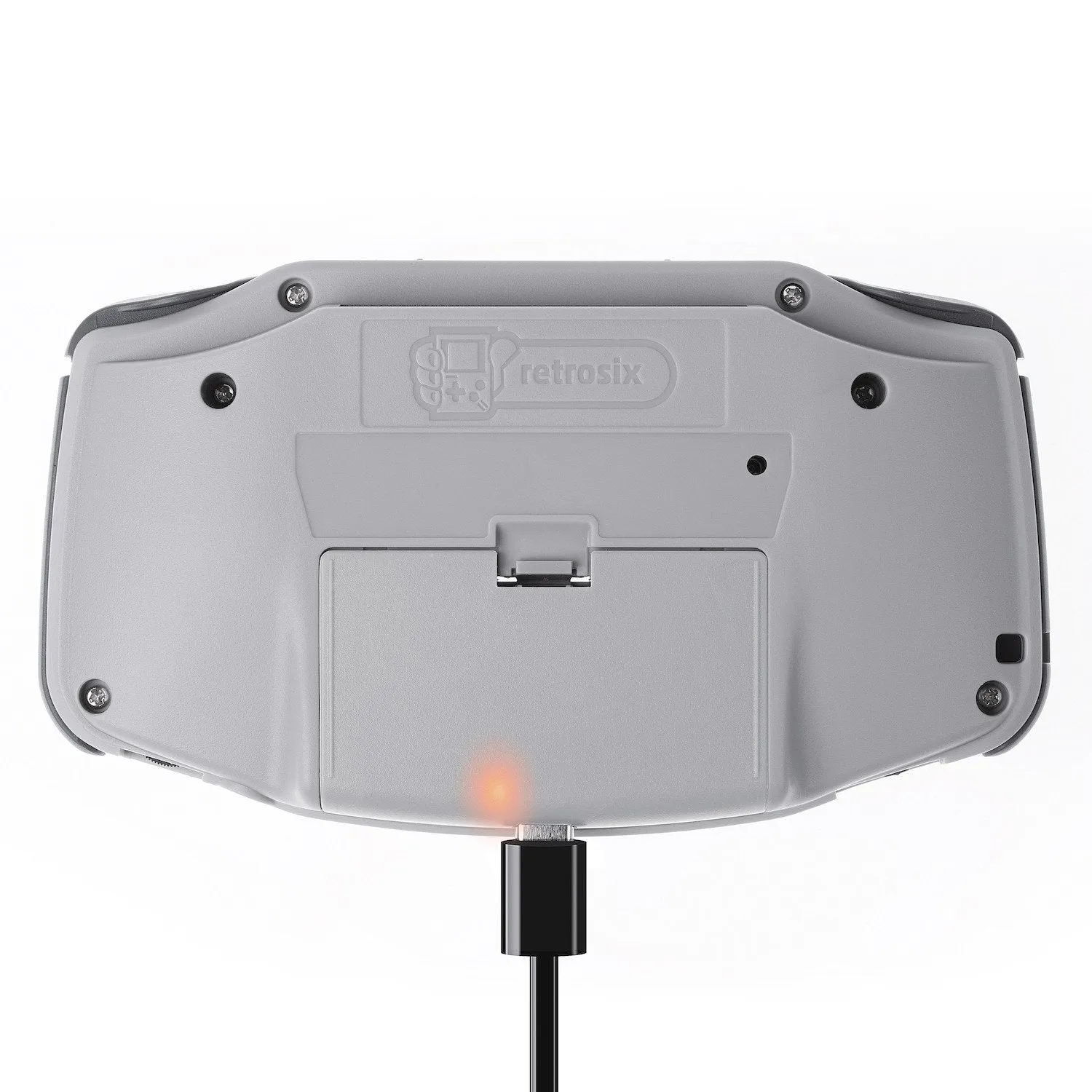

Adds 6.3W of power to your GBA! Charge at any time using a regular USB-C cable, and even reverse charge the console from your phone if it supports power share. That means you can charge your GBA while you are out, using your phone battery. Designed and tested in the UK by .

FEATURES:

USB-C battery
Uses a 1700mAH battery.
No soldering required.
Give the CleanJuice a full charge and enjoy hours of gaming! Check out to see how long it could last.
Low power indicator when the lipo is low, turns the in built GBA battery red, warning of 15-20 minutes play time left.

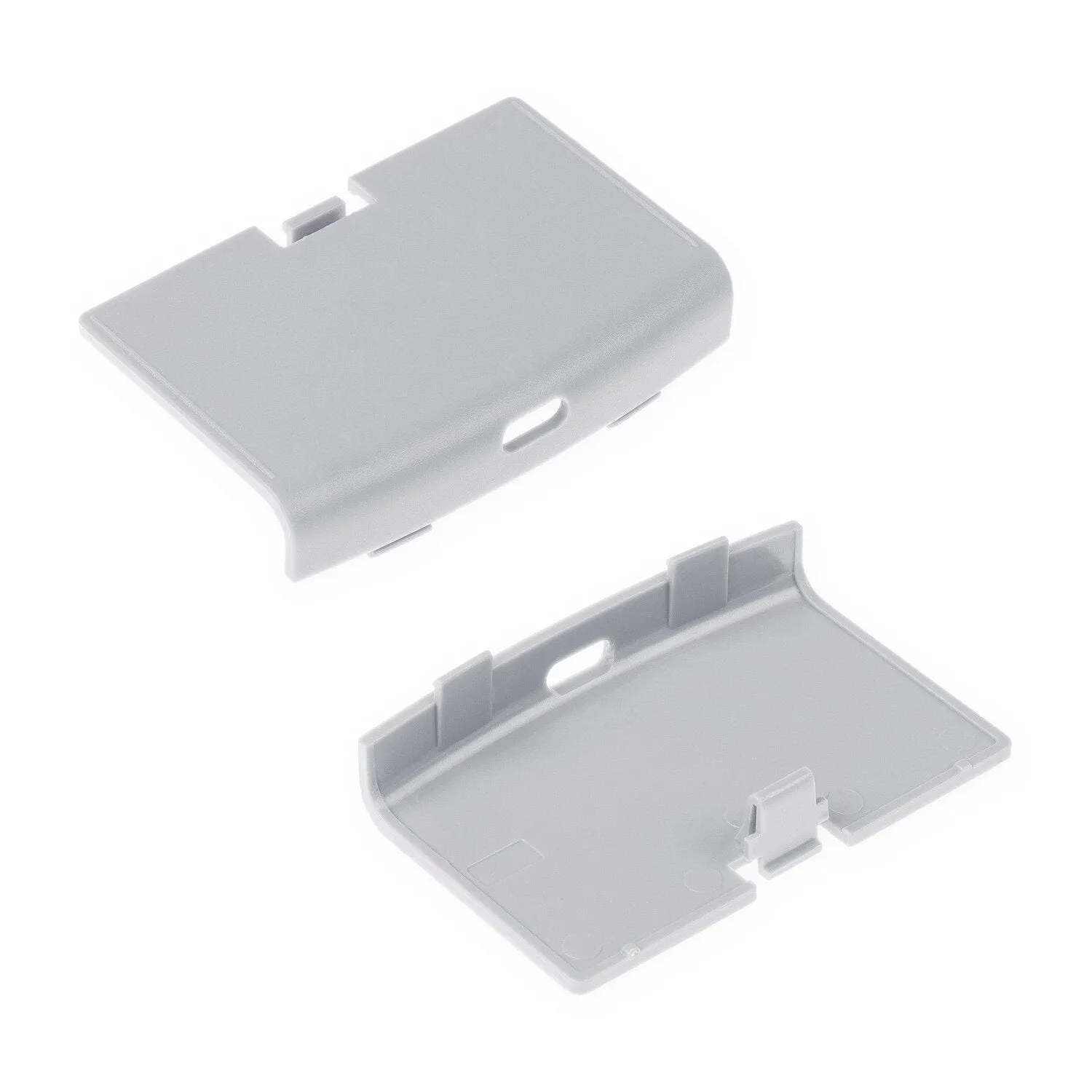

USB-C battery covers and charging cable sold separately.

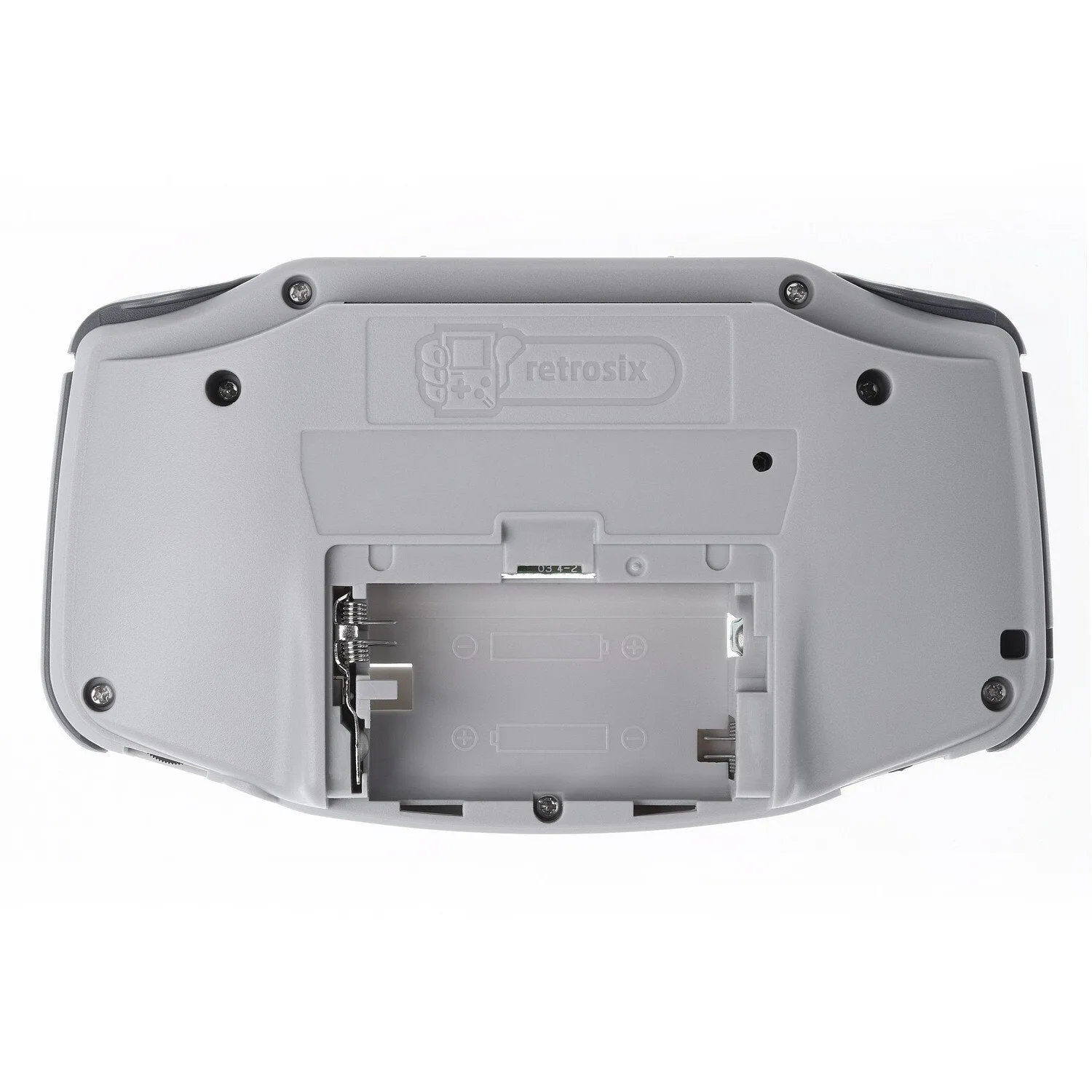

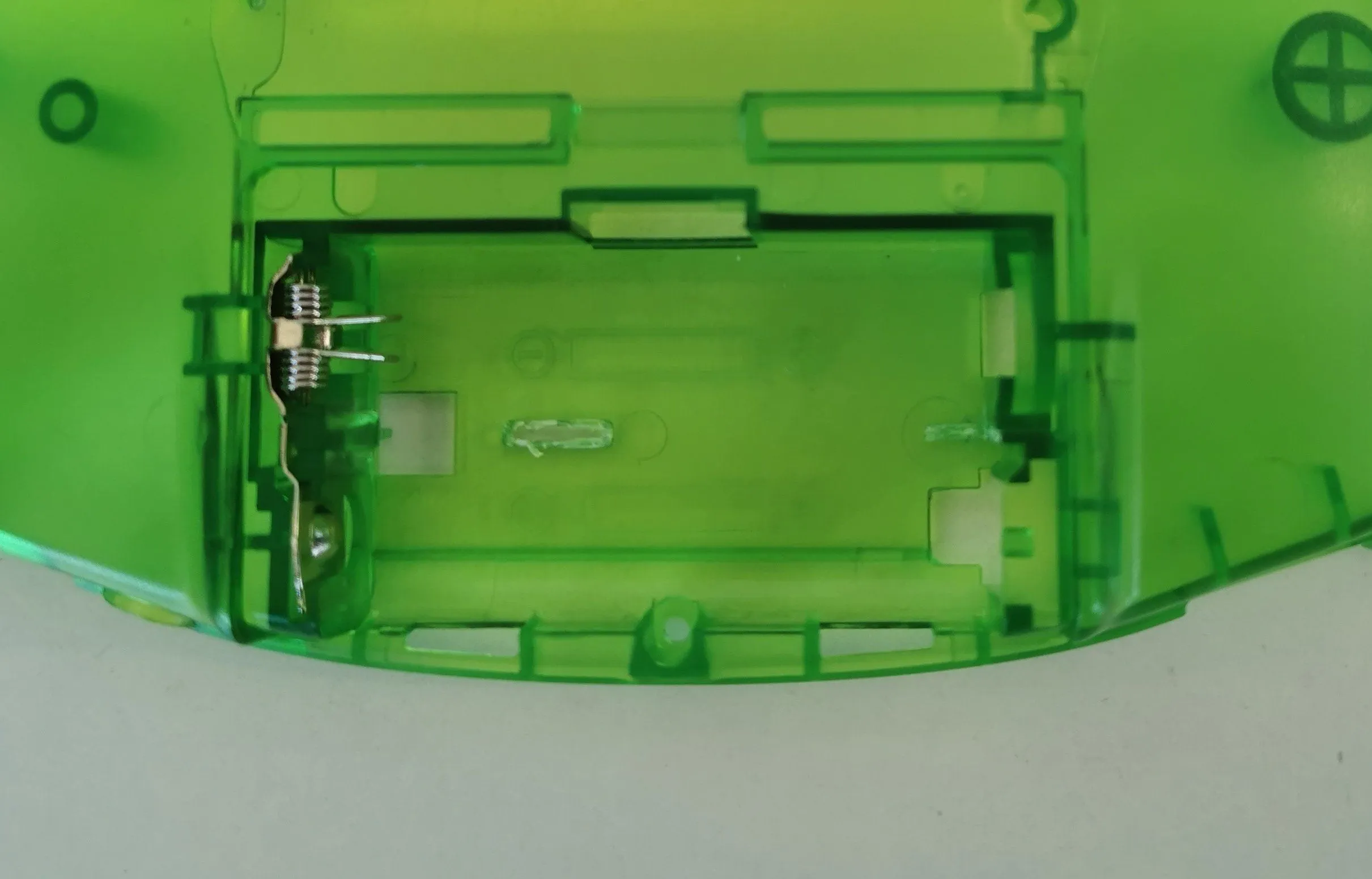

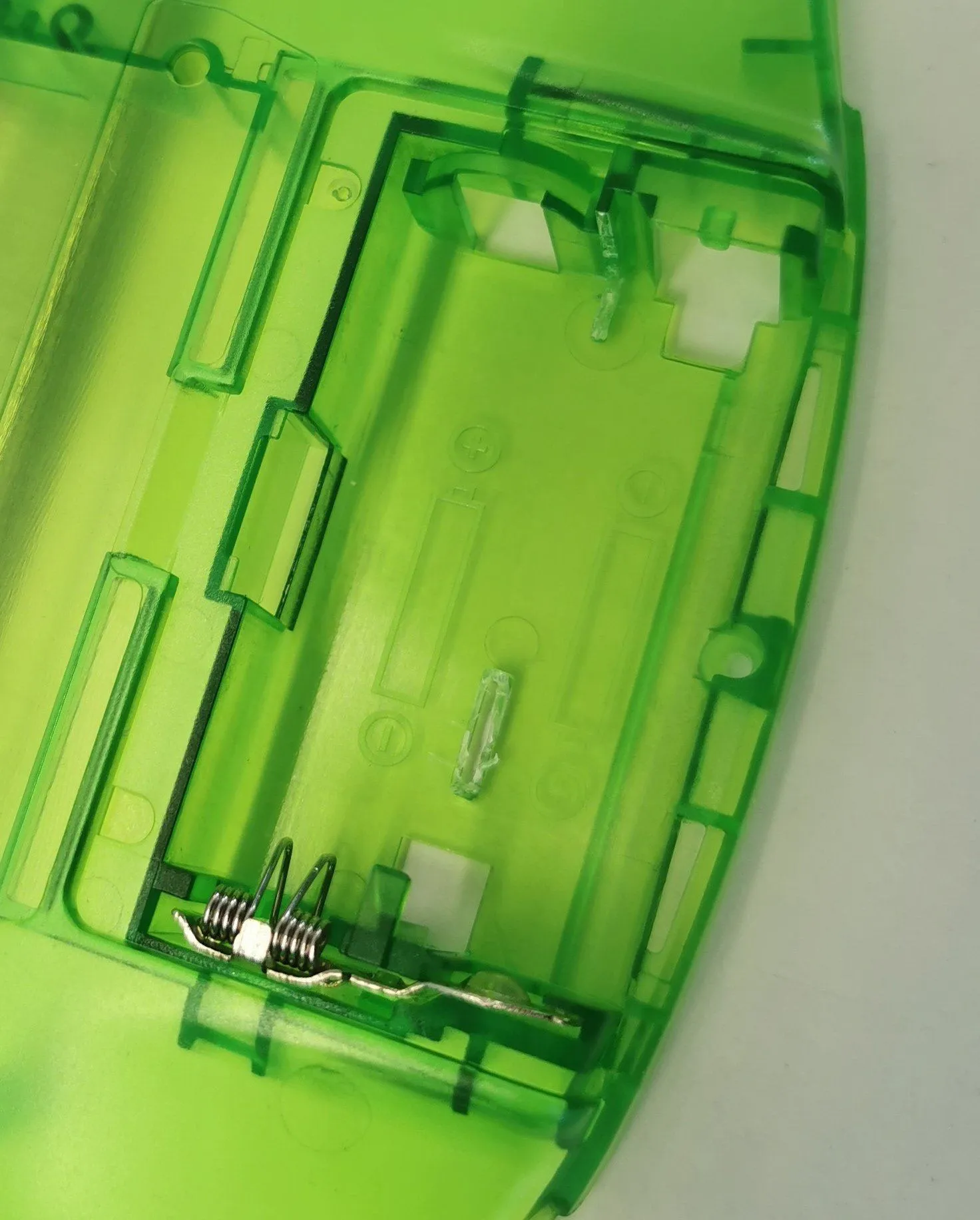

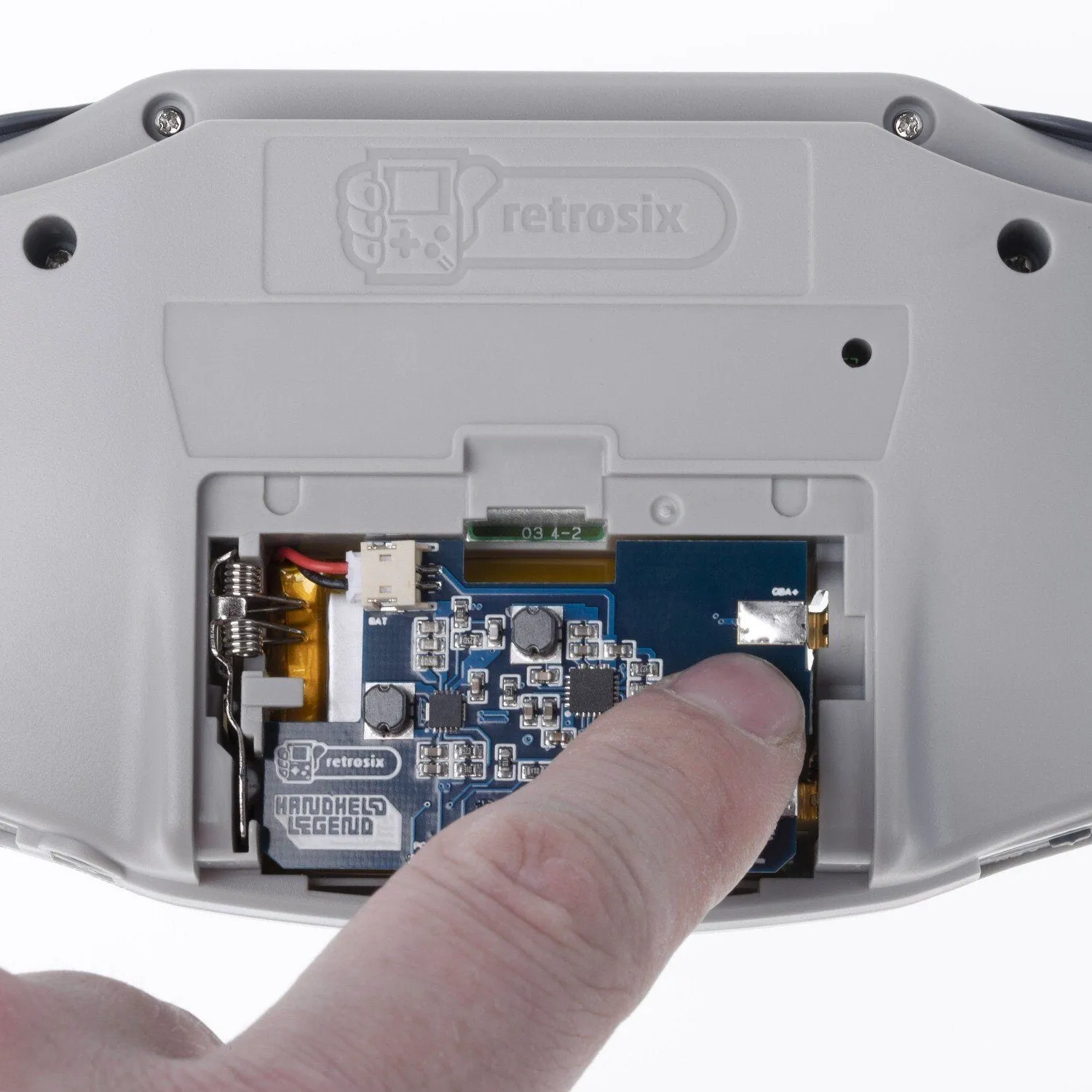

For regular and OEM shells: Battery housing modification required. USB-C Battery cover hole will need to be cut.
For IPS ready shells: Battery housing modification is not required. USB-C Battery cover hole will need to be cut or you may purchase a USB-C battery cover
Best fit with RetroSix shells, no modifications necessary.
If you want to pair this module with the shells by Hispeedido or FunnyPlaying, you will need to trim a tab on the upper left side of the Hispeedido/FunnyPlaying USB-C battery over. This tab hits the JST port on the CleanJuice PCB, preventing it from closing. You will also have to adjust/lift the module to line up with the USB port cut out.

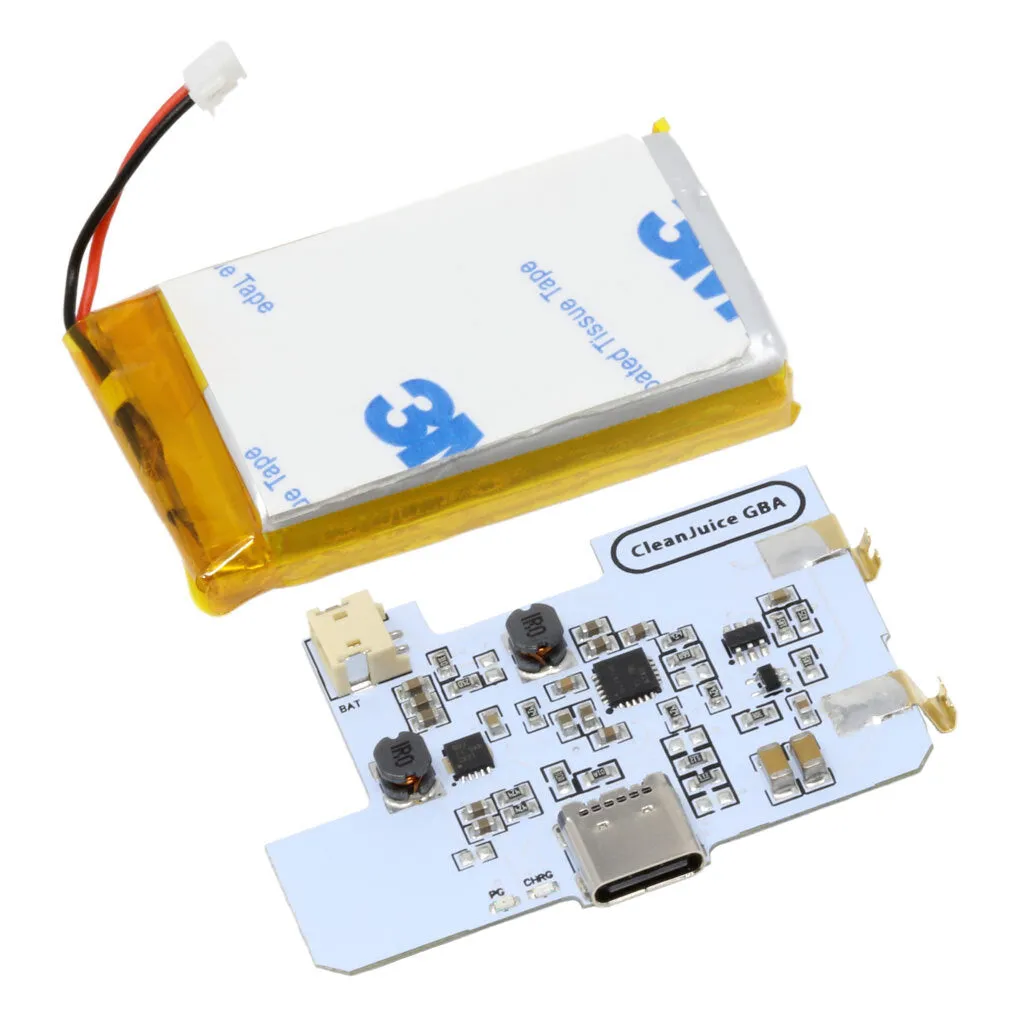

INCLUDED:

1x Cleanjuice board
1x 1700 mAH battery

PAIRS WELL WITH:

DOCUMENTATION:

Drill guide for regular battery covers:

NOTES:

Created by .

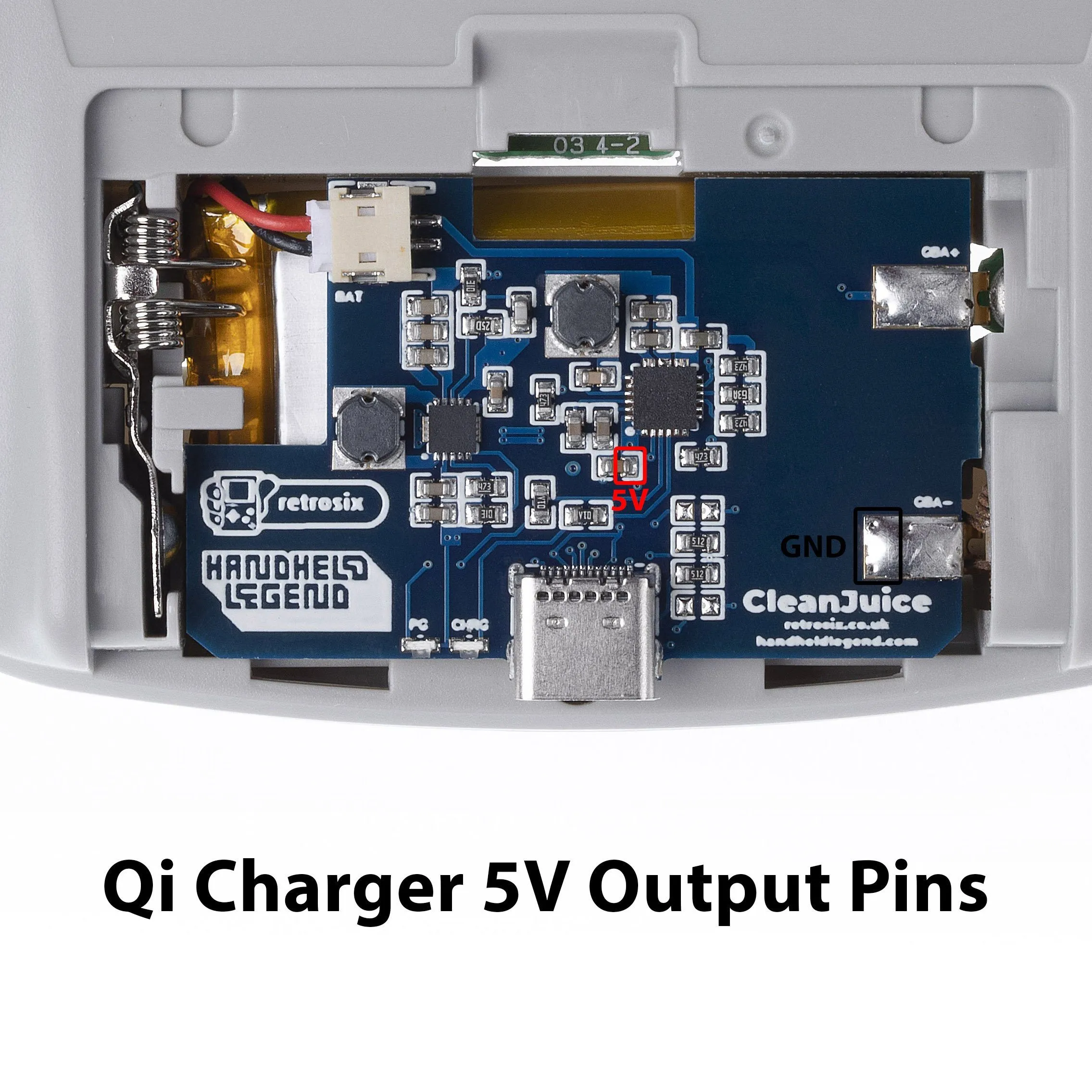

Compatible with Qi receivers - coil with wireless charging PCB You will need a coil and wireless charging PCB to complete the mod.

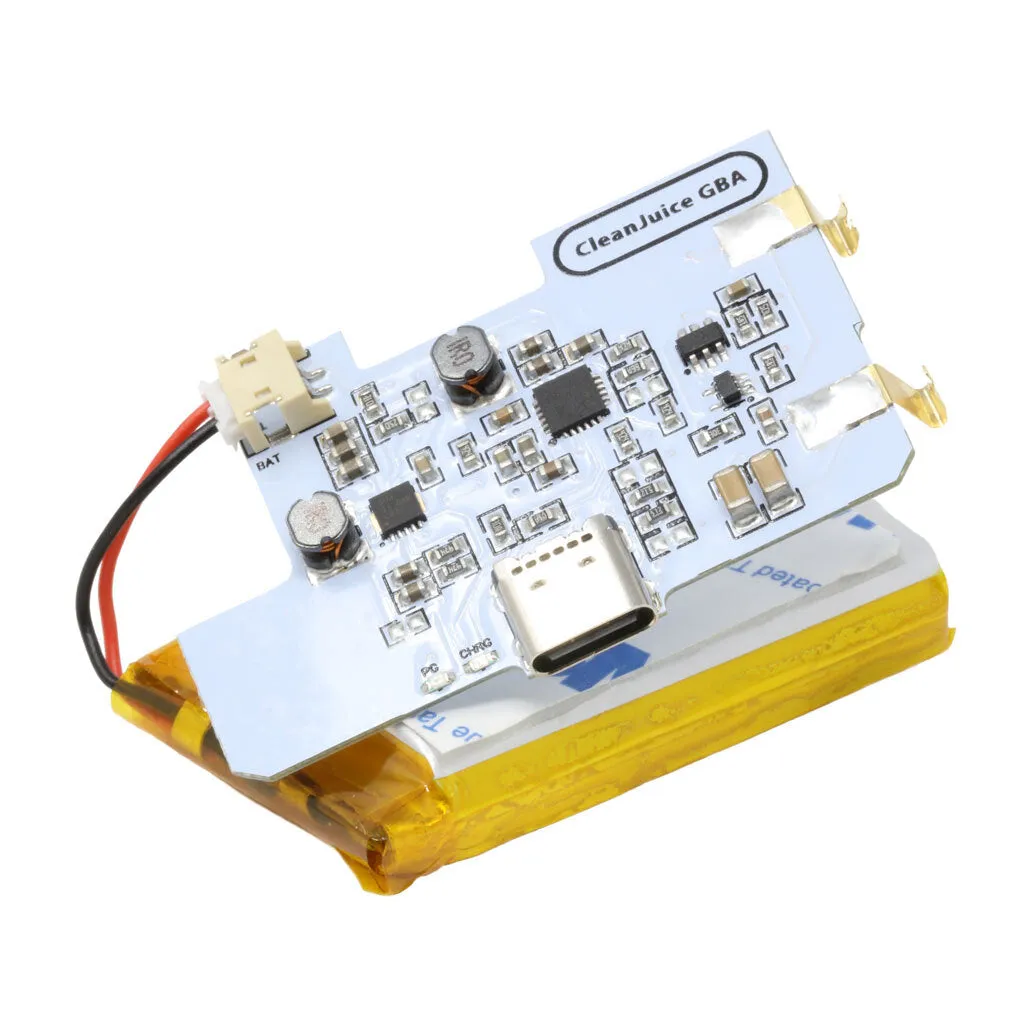

Light Indicator Key:

If the PG labeled light on the board is on, this means the USB cable is providing power to the system. This also means you can power your console from the USB without draining the battery - plug and play option.
If the CHG labeled light on the board is on, this means the USB is charging the battery. When it goes off, the battery is fully charged.
Both indicator lights will be on when module is charging. When module is fully charged, only the PG light will remain.
If you connect a USB cable and the PG light does not turn on, your cable or power supply are faulty.

WARNINGS:

Risk of fire if improperly charged or if battery is punctured. Only use protected power sources along with power delivery (PD) compliant cables and chargers. Using uncertified hardware may result in more than 5v being delivered to your CleanJuice product. Damage caused by unsupported hardware voids our return/exchange policy. Examples of supported chargers:
