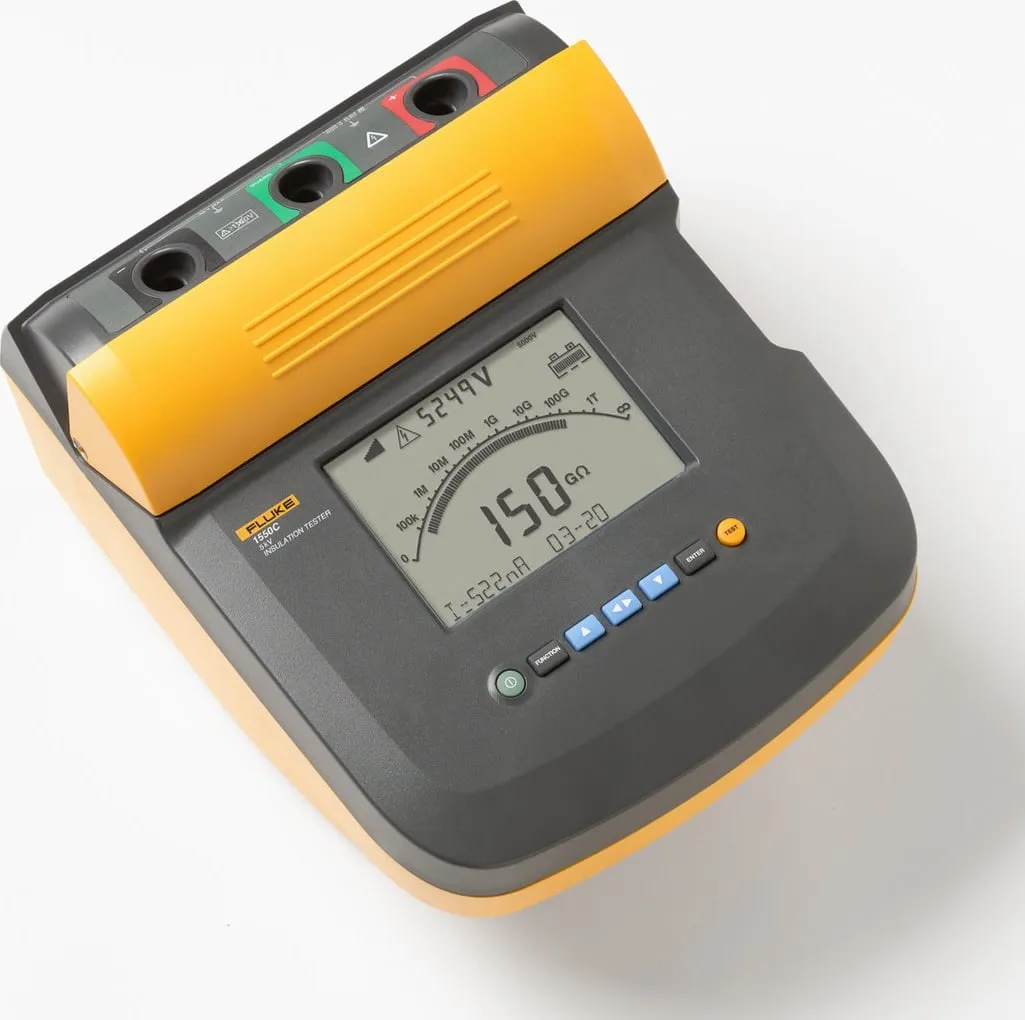

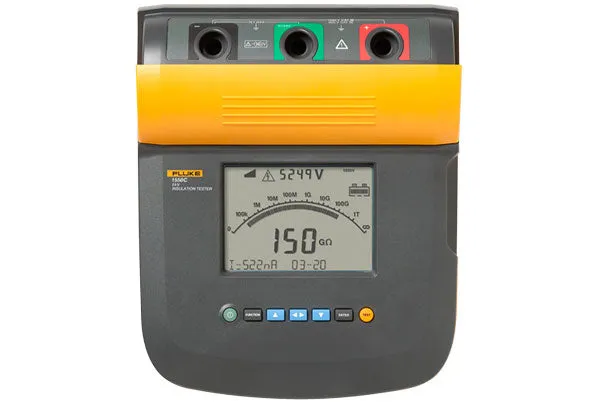

Name: Fluke 1550C Digital Insulation Resistance Tester, 5kV
SKU: 898395

Product Details ＋

Ideal for preventive or predictive maintenance programs, this insulation resistance tester identifies potential equipment failures before they occur. This tool is Fluke Connect compatible tests digital insulation up to 5 kV. Additionally, remote operation enables you to spend less time in potentially hazardous areas.

Evaluate the trends, eliminate the doubt

Test up to 5 kV and makes data collection easy due to its compatibility with the Fluke Connect™ wireless application. This insulation meter is ideal for testing a wide range of high voltage equipment including switchgear, motors, generators, and cables.

Conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class and CAT IV 600 V safety rating. With measurement storage and PC interface, it is ideal for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.

Features

Quickly configure, start, and stop tests remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smartphone
Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps above 1000 V
CAT III 1000 V, CAT IV 600 V safety rating
Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
Long battery life gives the user over 750 tests between charges
Large digital/analog LCD for easy viewing
Capacitance and leakage current measurement
Ramp function for breakdown testing
Resistance measurements up to 2 TΩ
Timer settings up to 99 minutes for timed tests

Applications

High voltage
Preventive maintenance programs
Predictive maintenance programs

Fluke 1550C Specifications

Test Voltage (DC) 250 V
Range	<250 kΩ 250 kΩ to 5 GΩ 5 to 50 GΩ >50 GΩ
Accuracy (± Reading)	Unspecified 5% 20% Unspecified
Test Voltage (DC) 500 V
Range	<500 kΩ 500 kΩ to 10 GΩ 10 to 100 GΩ >100 GΩ
Accuracy (± Reading)	Unspecified 5% 20% Unspecified
Test Voltage (DC) 1000 V
Range	<1 MΩ 1 MΩ to 20 GΩ 20 to 200 GΩ >200 GΩ
Accuracy (± Reading)	Unspecified 5% 20% Unspecified
Test Voltage (DC) 2500 V
Range	<2.5 MΩ 2.5 MΩ to 50 GΩ 50 to 500 GΩ >500 GΩ
Accuracy (± Reading)	Unspecified 5% 20% Unspecified
Test Voltage (DC) 5000 V
Range	<5 MΩ 5 MΩ to 100 GΩ 100GΩ to 1 TΩ >1 TΩ
Accuracy (± Reading)	Unspecified 5% 20% Unspecified
Insulation Resistance Measurement
Bar Graph Range	0 to 1 TΩ
Insulation Test Voltage Accuracy	-0%, 10% at 1 mA load current
Induced AC Mains Current Rejection	2 mA maximum
Charging Rate for Capacitive Load	5 seconds per µF
Discharge Rate for Capacitive Load	1.5 s/µF
Leakage Current Measurement	Range: 1 nA to 2 mA Accuracy: ±(5% 2 nA)
Capacitance Measurement	Range: 0.01 to 15.00 µF Accuracy: ±(15% rdg 0.03 µF)
Timer	Range: 0 to 99 minutes Resolution setting: 1 minute Resolution Indication: 1 second
Live Circuit Warning	Warning range: 30 to 660 V AC/DC, 50/60 Hz Voltage accuracy: ±(15% 2 V)
Software Specifications	FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display	2.95 x 4.13" (75 x 105 mm)
Power	12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC)	85 to 250 V AC 50/60 Hz 20 VA
Operating Temperature	-4 to 122°F (-20 to 50°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
Humidity	80% to 88°F (31°C) decreasing linearly to 50% at 122°F (50°C)
Altitude	6561.7' (2000 m)
Enclosure Sealing	IP40
Input Overload Protection	1000 V AC
Electromagnetic Compatibility	EN 61326
Dimensions	10.6 x 10.9 x 6.3" (269 x 277 x 160 mm)
Weight	8.2 lbs (3.7 kg)
