Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Approvals | UL Recognized;cUL Recognized |
| Connection | M12 |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA PNP, 250 mA NPN at 10-30 Vdc |
| Height | .71 Inch |
| Input Voltage | 10-30 Vdc |
| Length | 2.55 Inch |
| NEMA Rating | NEMA 1 ; NEMA 2 ; NEMA 3 ; NEMA 4 ; NEMA 4X ; NEMA 6 ; NEMA 12 ; NEMA 13 |
| Number of Pins | 4 pin |
| Protection | Auto reset S/C |

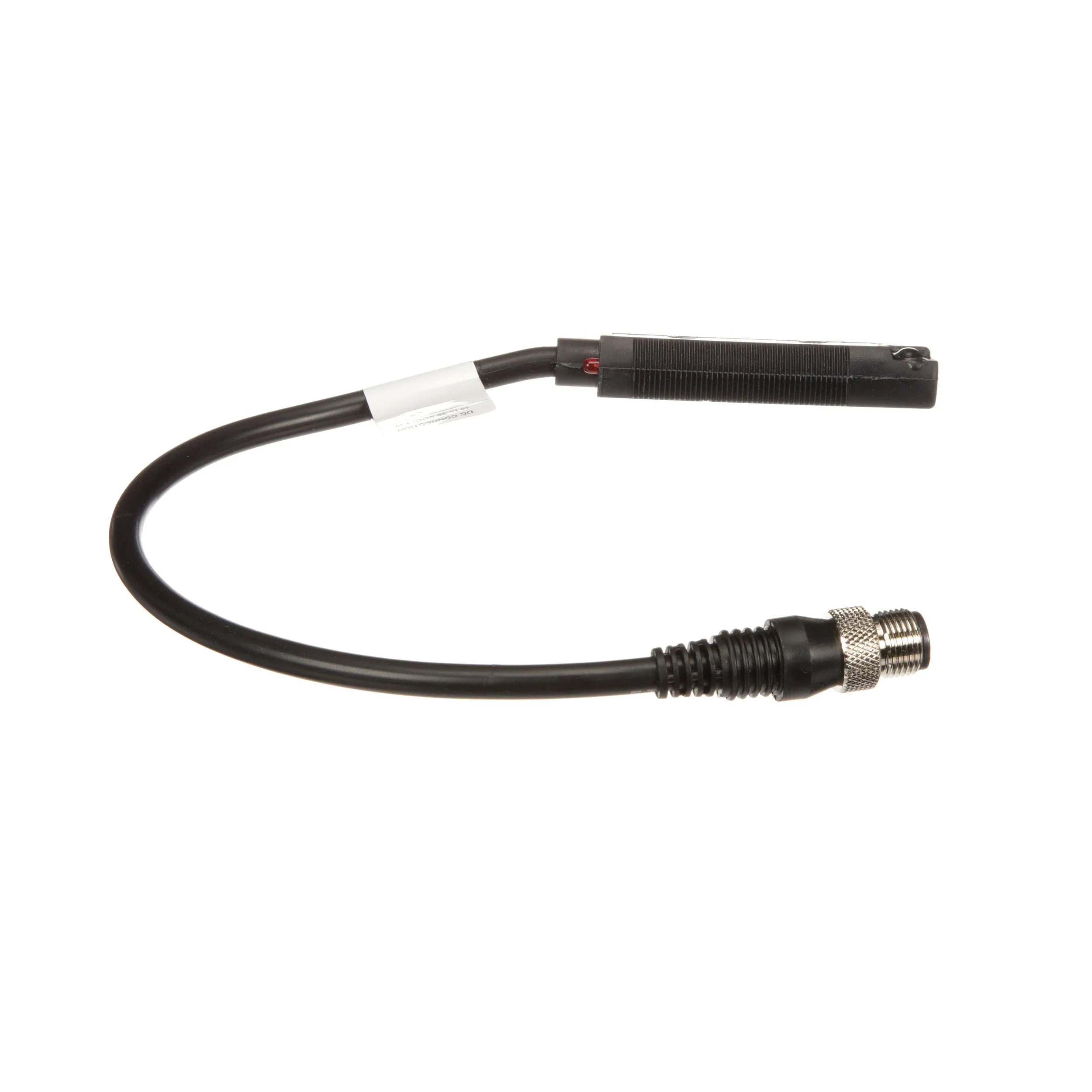

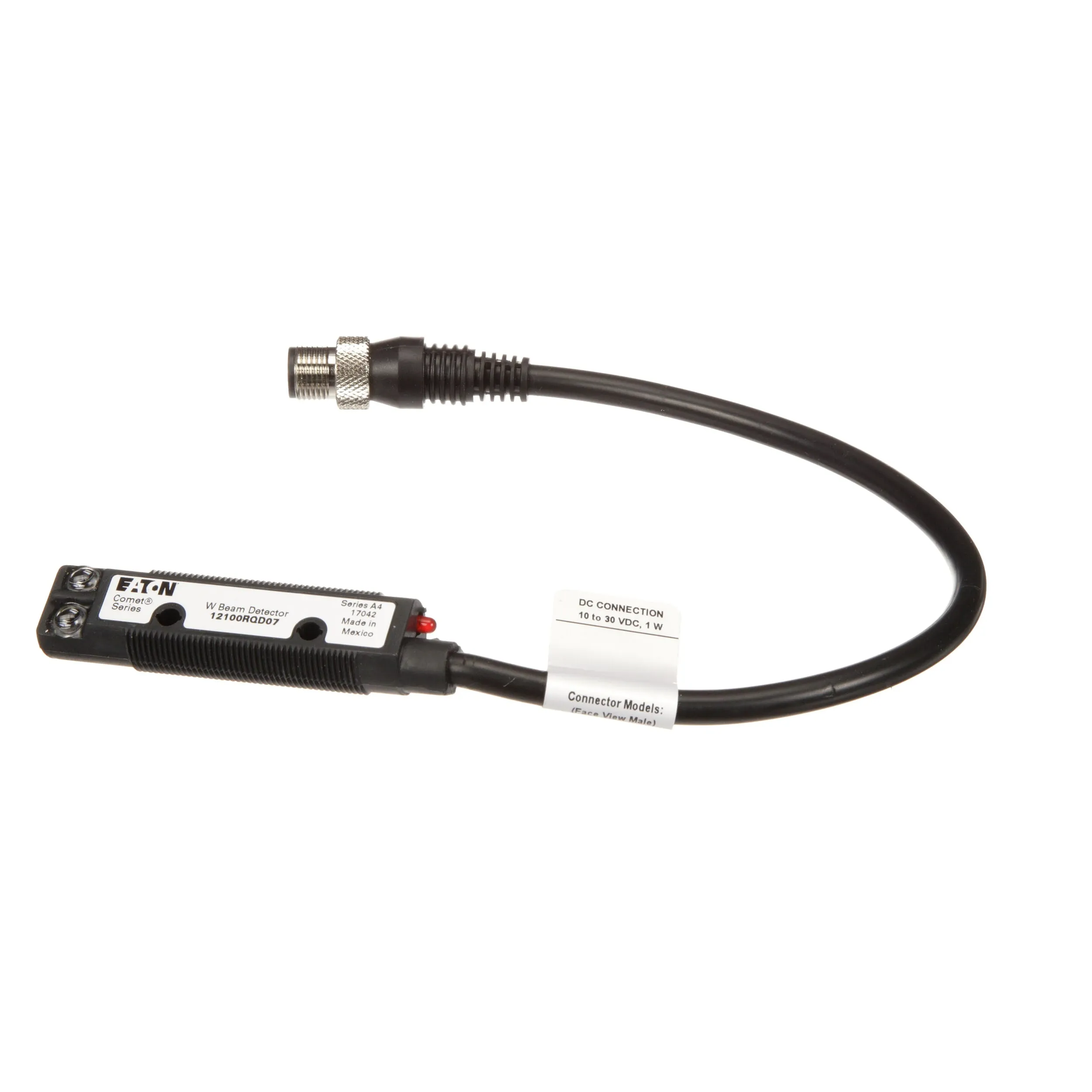

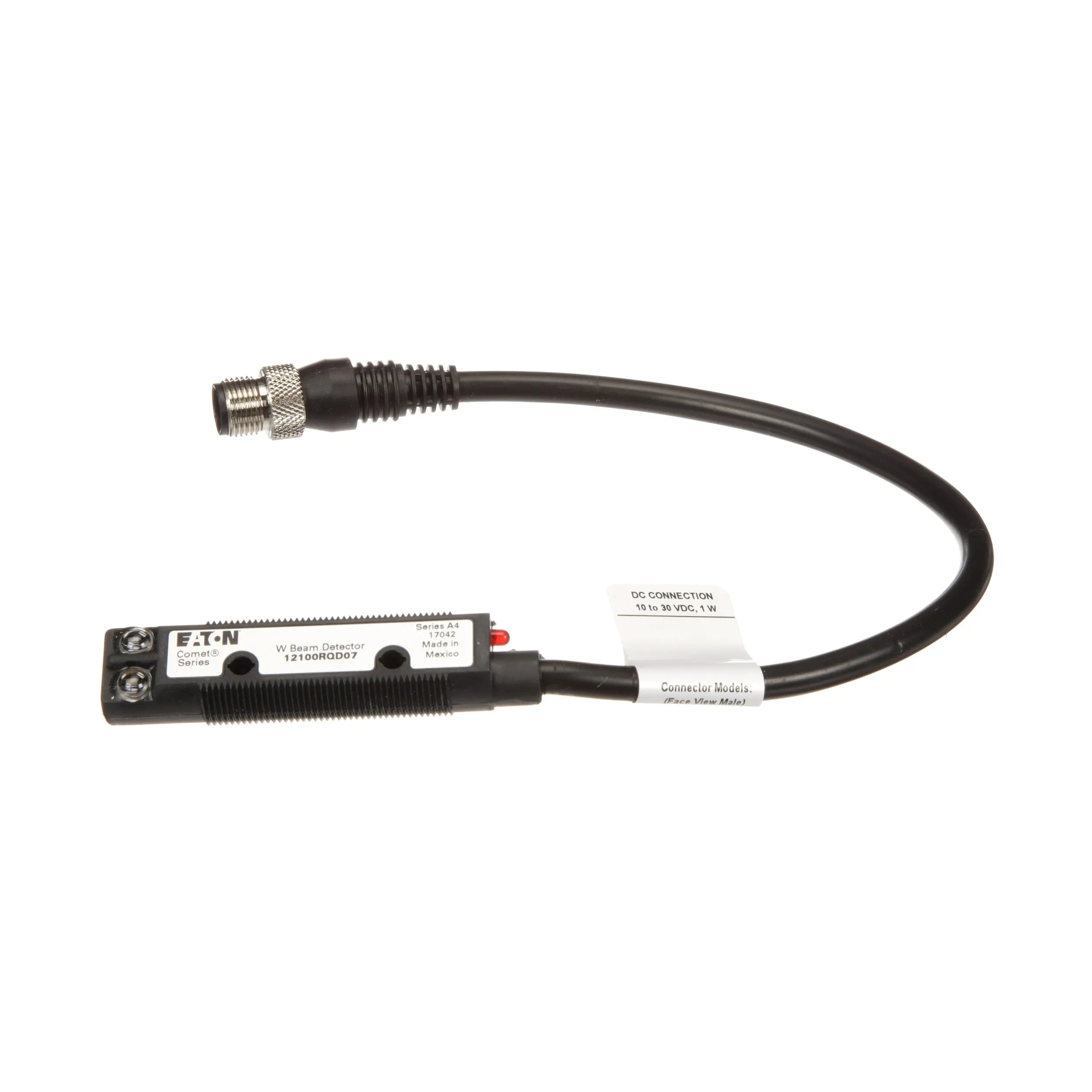

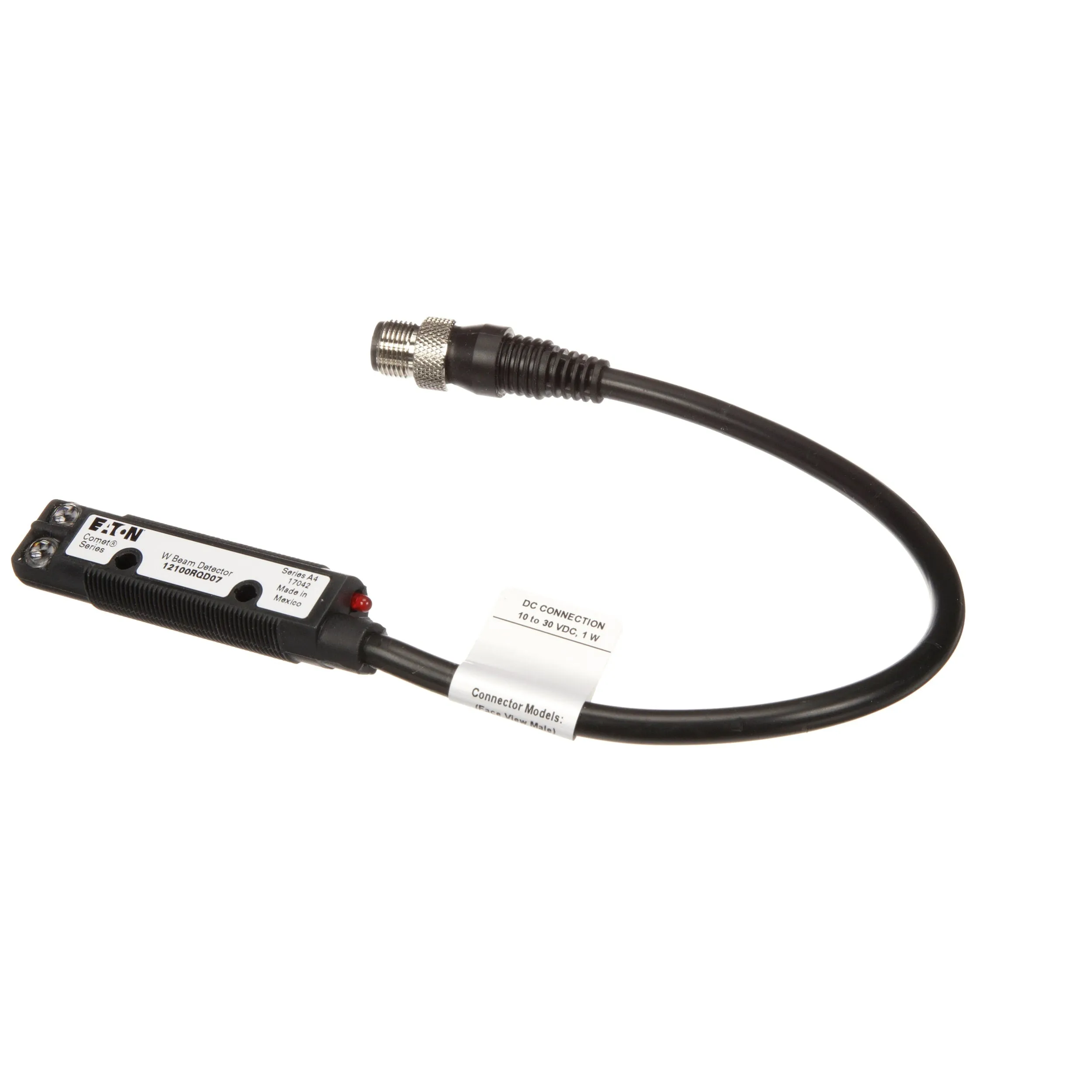

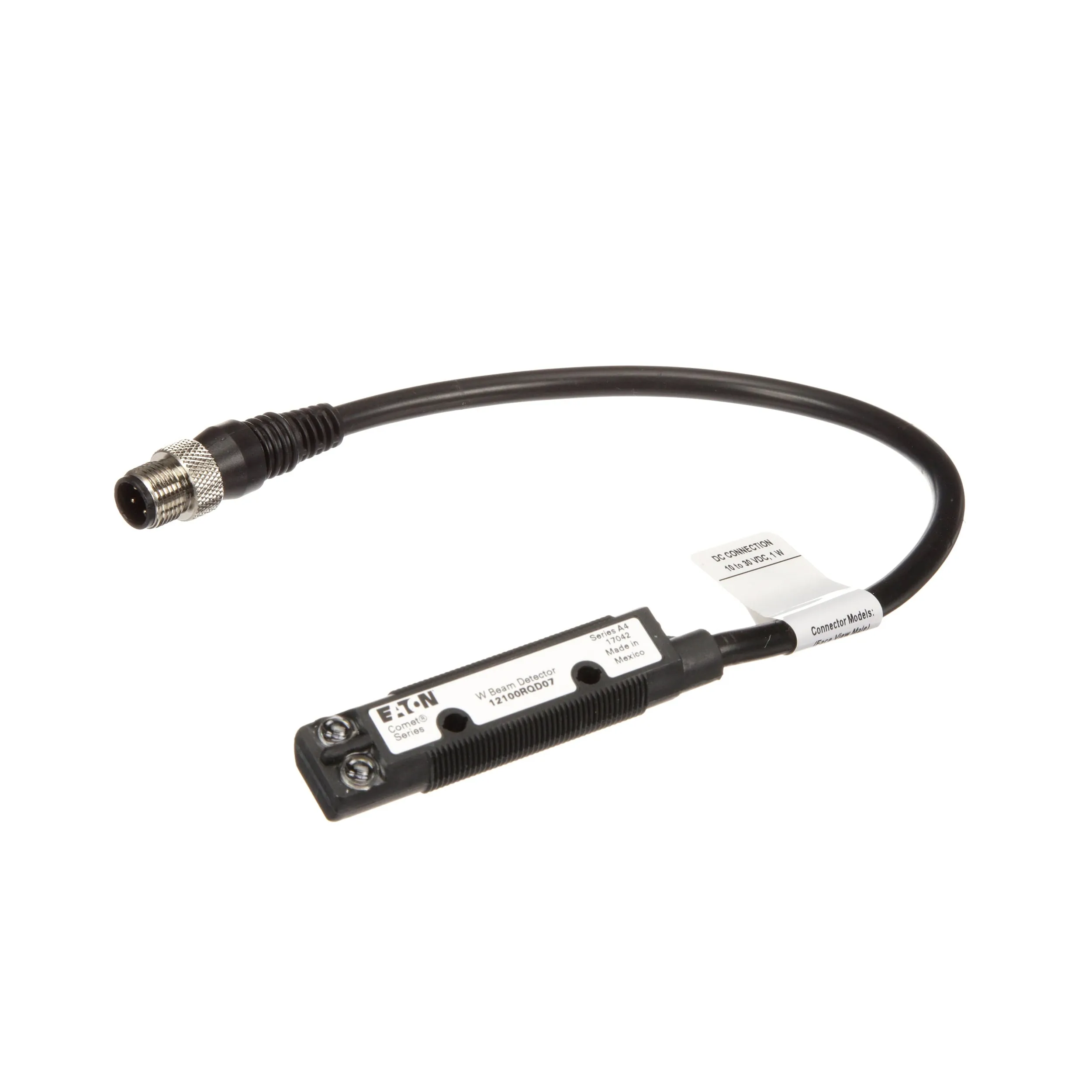

| Sensing Mode | Through Beam Receiver |
| Sensor Type | Through Beam |
| Series | |
| Type | Through Beam Sensors |
| UPC Code | 782113843490 |
| Width | .47 Inch |
Overview
Eaton Comet Series Sensors
The comet series of high performance, 18mm tubular sensors by Eaton have been designed in a variety of models and modes to solve virtually any sensing problem. The sensors are available in thru-beam, reflex, polarized reflex, diffuse reflective, focused diffuse reflective, wide angle diffuse reflective, perfect prox and plastic fiber optic sensing.
