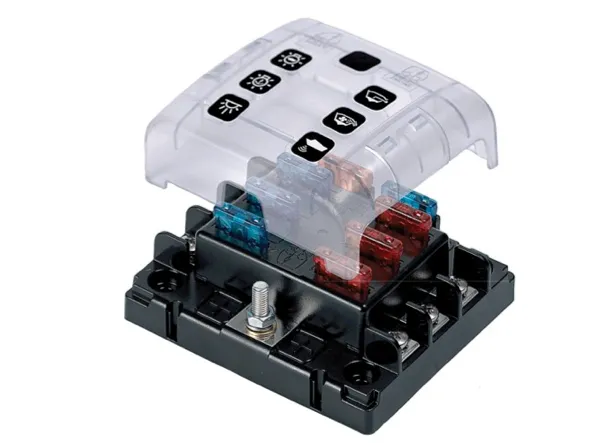

The BEP™ ATC Fuse Holder provides compact, easy access to fuses with the design integrity only BEP can offer.

Key Features

• Allows for multiple fuse holders and bus bars to be joined together, increasing the number of circuits protected
• Fuse holder inputs can be linked together to form a single continuous fuse holder
• Includes patented Contour Lock system, see-thru clip-on cover and label set
• Available with screw terminals or quick connect terminals
• Positions for spare fuses

Specifications

• ATC Fuse Holder
• Max. current / circuit: 30A;
• Max. current / block: 100A;
• Max. voltage: 32V DC;
• Base & cover material: Polycarbonate

Dimensions

• Width: 80mm ( 3.1" )
• Length: 90mm ( 3.6" )
• Height: 47mm ( 1.9" )

Models

• BEP ATC 6 Way Fuse Holder
• BEP ATC 6 Way Fuse Holder Quick Connect
