Acopower Mono Kit 20W 5A

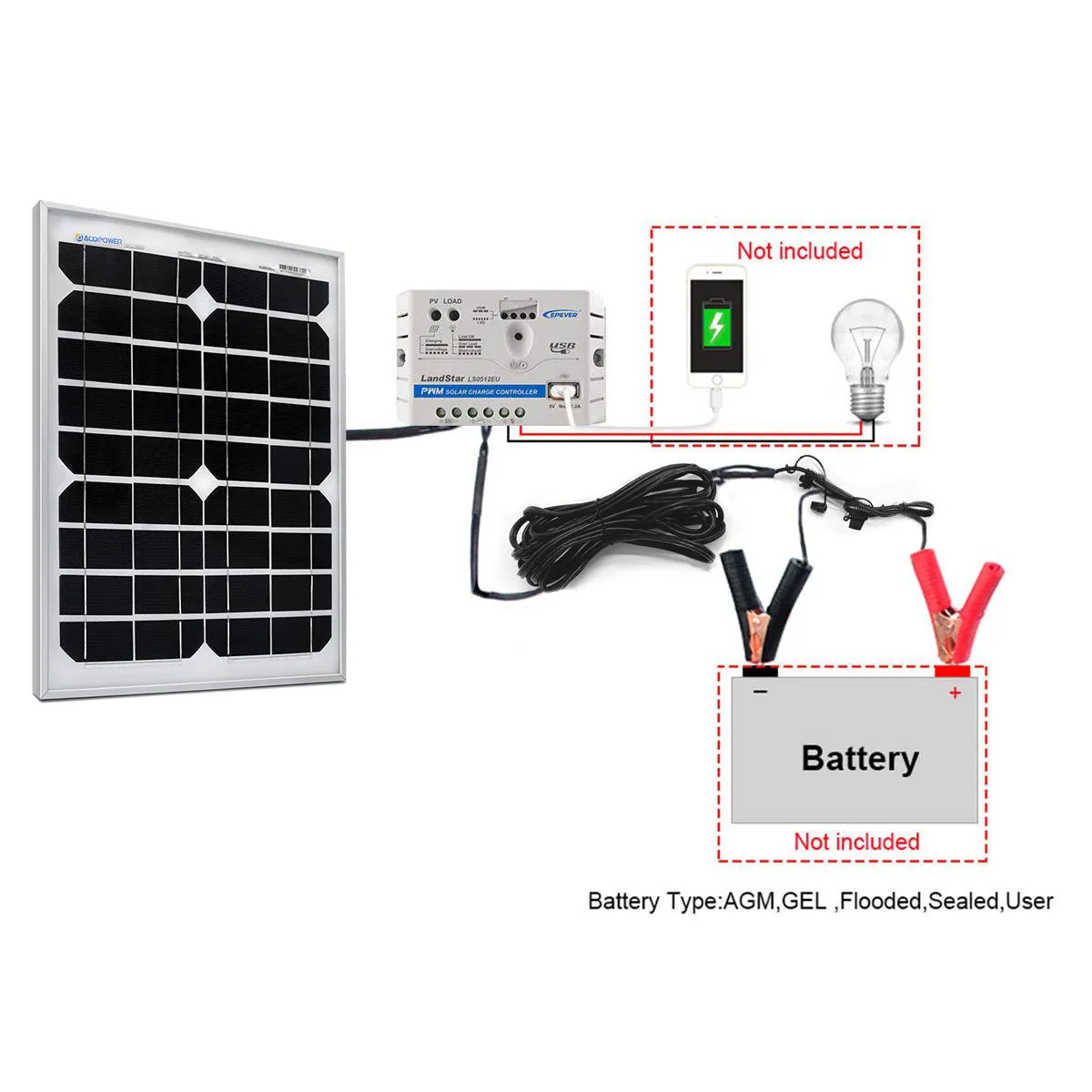

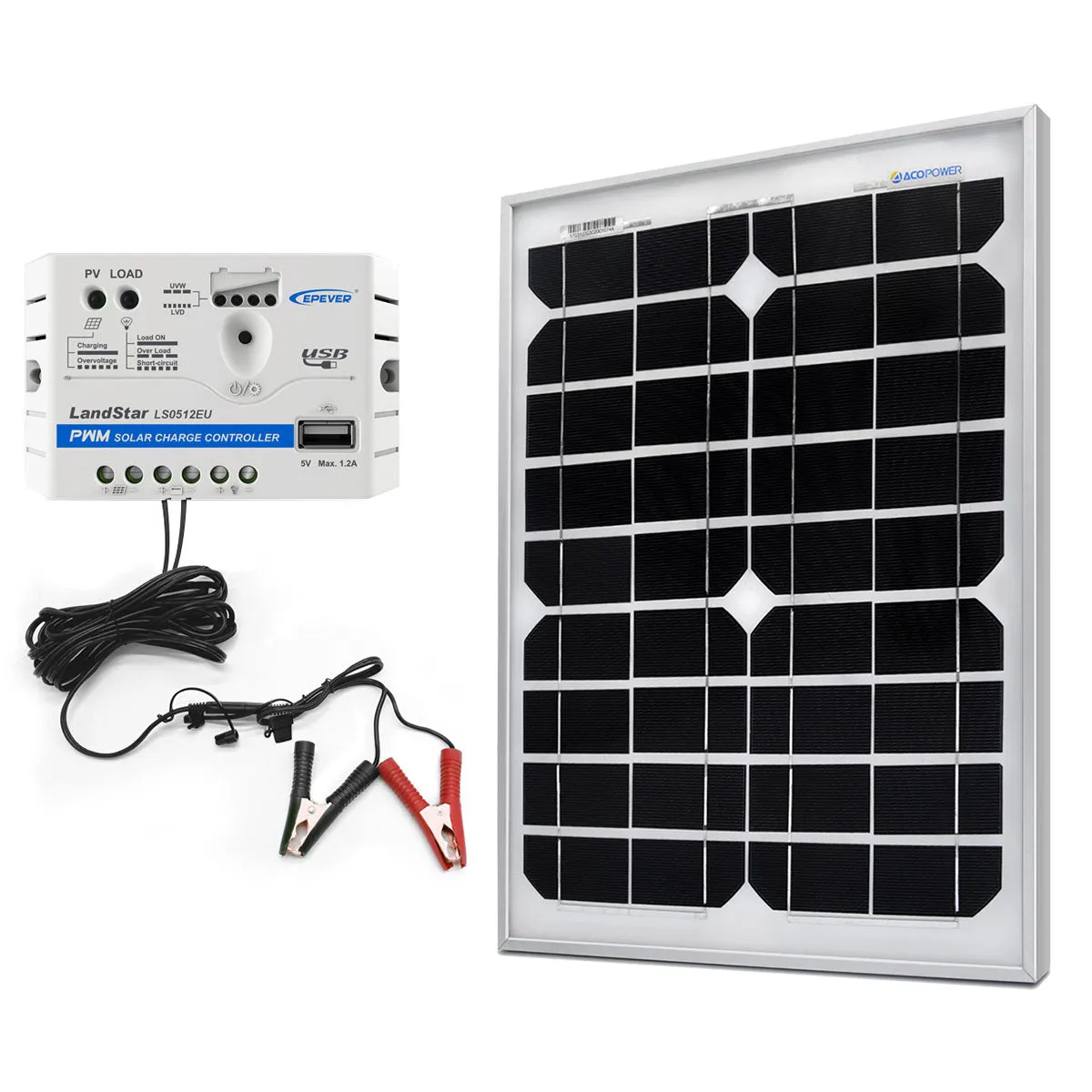

Acopower Mono Kit 20W 5A is what you need to kick start your green energy haul. Complete with a 20W 12V mono solar panel, a 5A PWM charge controller with SAE connectors and Alligator clamps and a 20ft cable. Complex engineering simplified for amateurs, our solar panel is pre drilled for easy installation. Even the SAE connector is tailor-made for pre-wired 2 pin socket in sidewall of RV, making this the best choice of portable power.

Designed for off-grid adventures, the Mono Kit charges 12V lead acid batteries especially the sealed, flooded, GEL and AGM types which are typically fitted in boats, cars, RVs and campers. A 5A charge controller is in place with an auto cutoff when the battery is fully charged protected your battery and device. Any voltage drop and it automatically starts charging keeping you hooked to the sustainable energy source in the safest possible way.

Specifications:

Compatible: 12V/24V/36V/48V Solar System

Warranty:  Material and Craftsmanship-5 years, Power Output-25 years, Accessories-1 year

Water Proof: IP65

Pay Load: High Wind (2400Pa), Snow Load (5400Pa)

Peak Power (Pmax): 20W

Open Circuit Voltage (VOC) : 22V

Max Power voltage): 17.5V

Short Circuit Current(Isc): 1.23A

Max Power Current(Imp): 1.14A

Weight: 6.20 lb

Dimension: 13.6 x 18.5 x 0.8inches

All technical data at STC Test condition:1000W/m², AM1.5,25℃

Working Voltage :12V

Working Current:5A

Working Mode: PWM Charging Add a 5V/1.2A USB Terminal Output

Battery Type Options: Sealed, Gel, Flooded

What's in the Box:

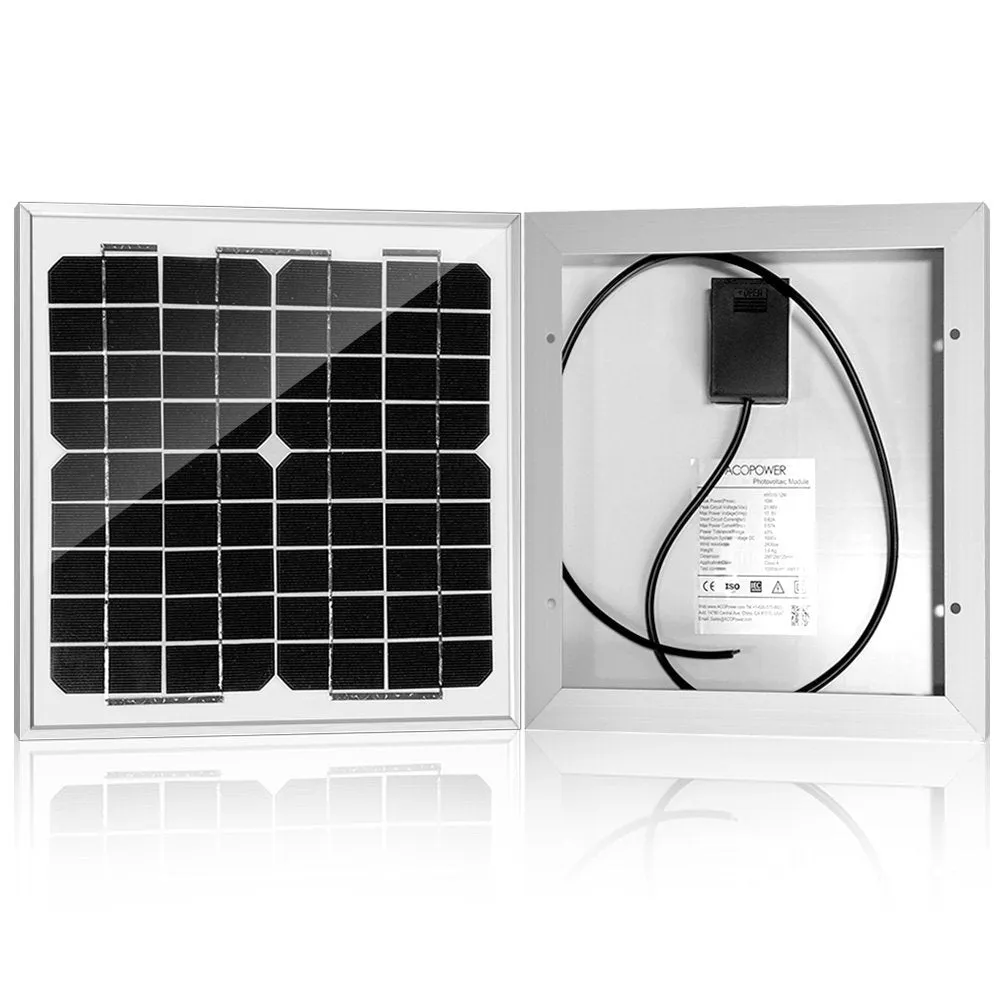

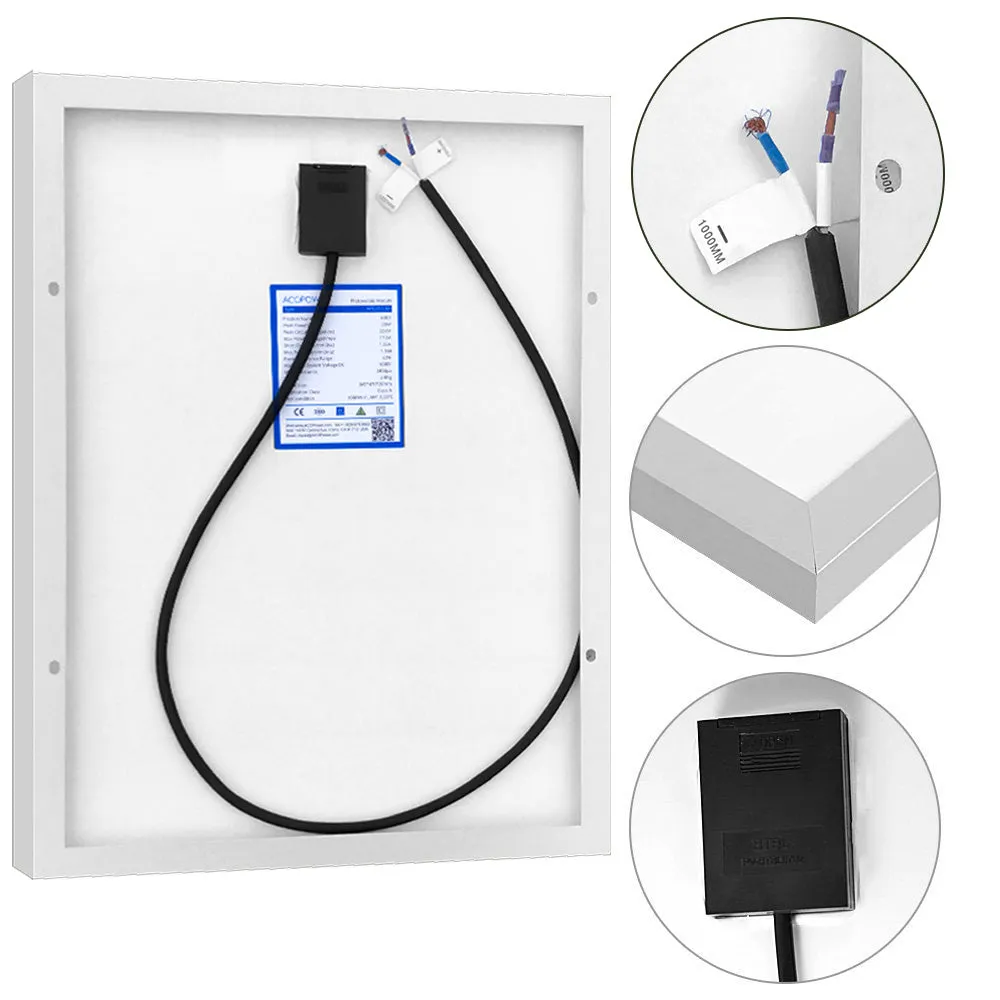

1 x 20W Solar Panel

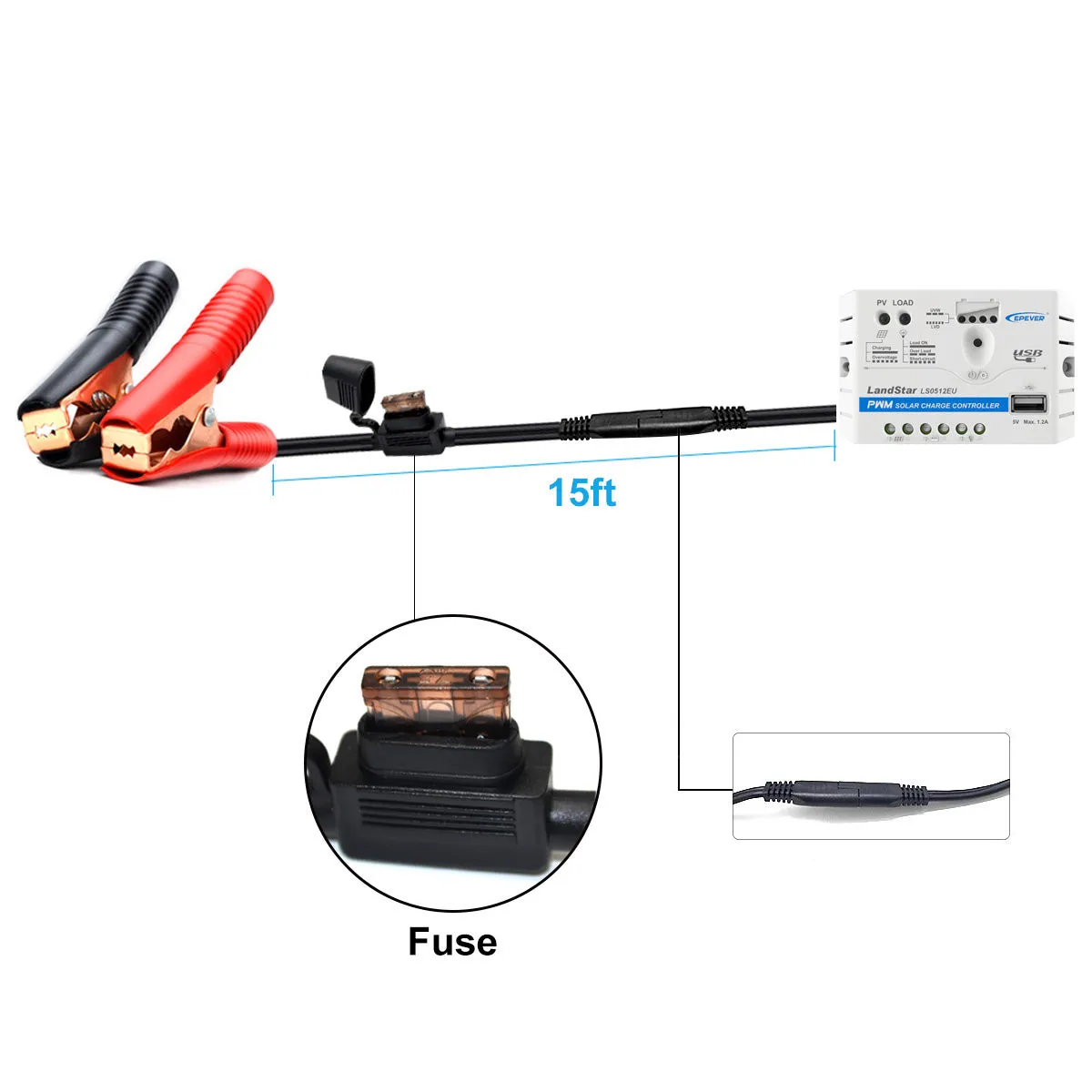

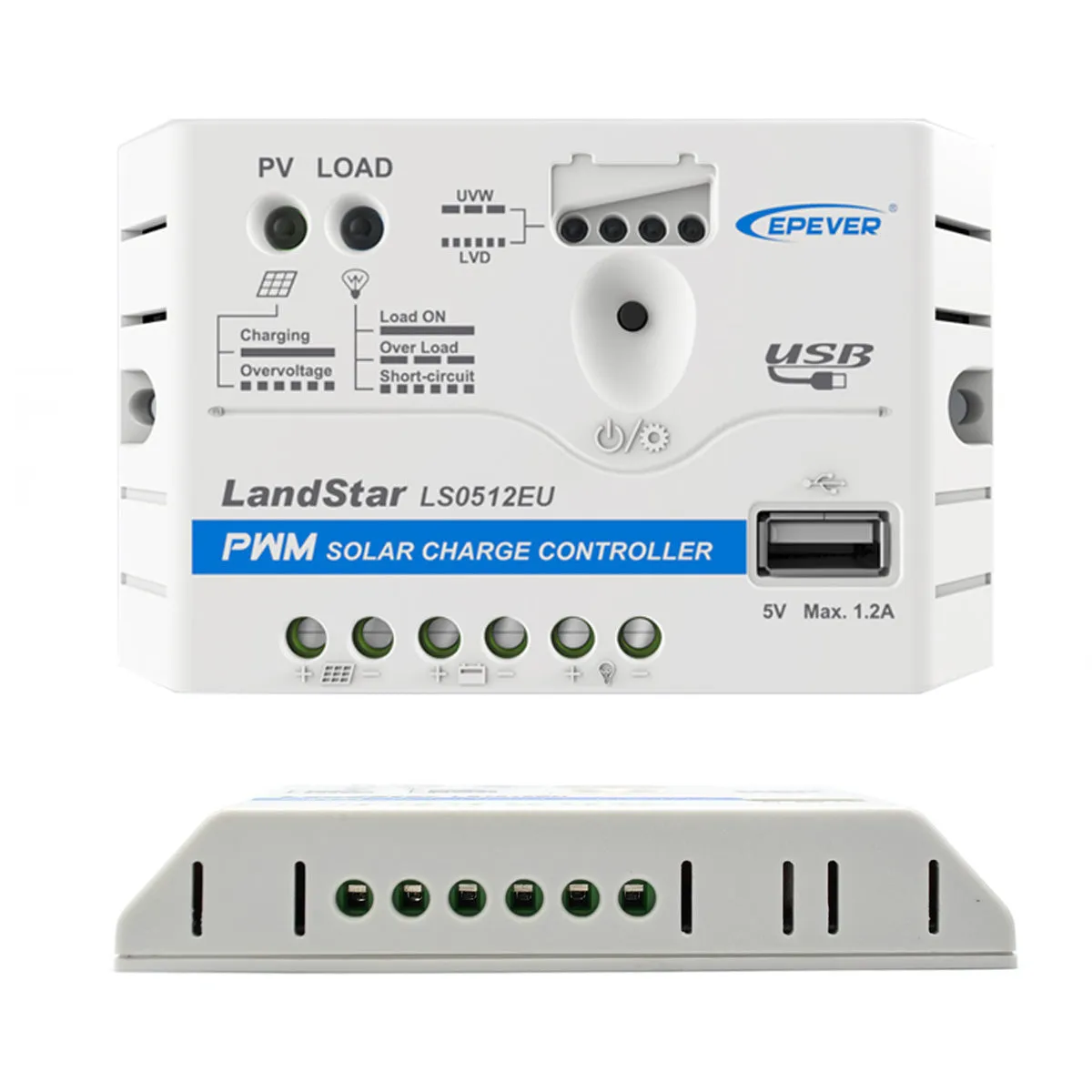

1 x 5A Charge Controller with Alligator Clips

1 x User Manual
