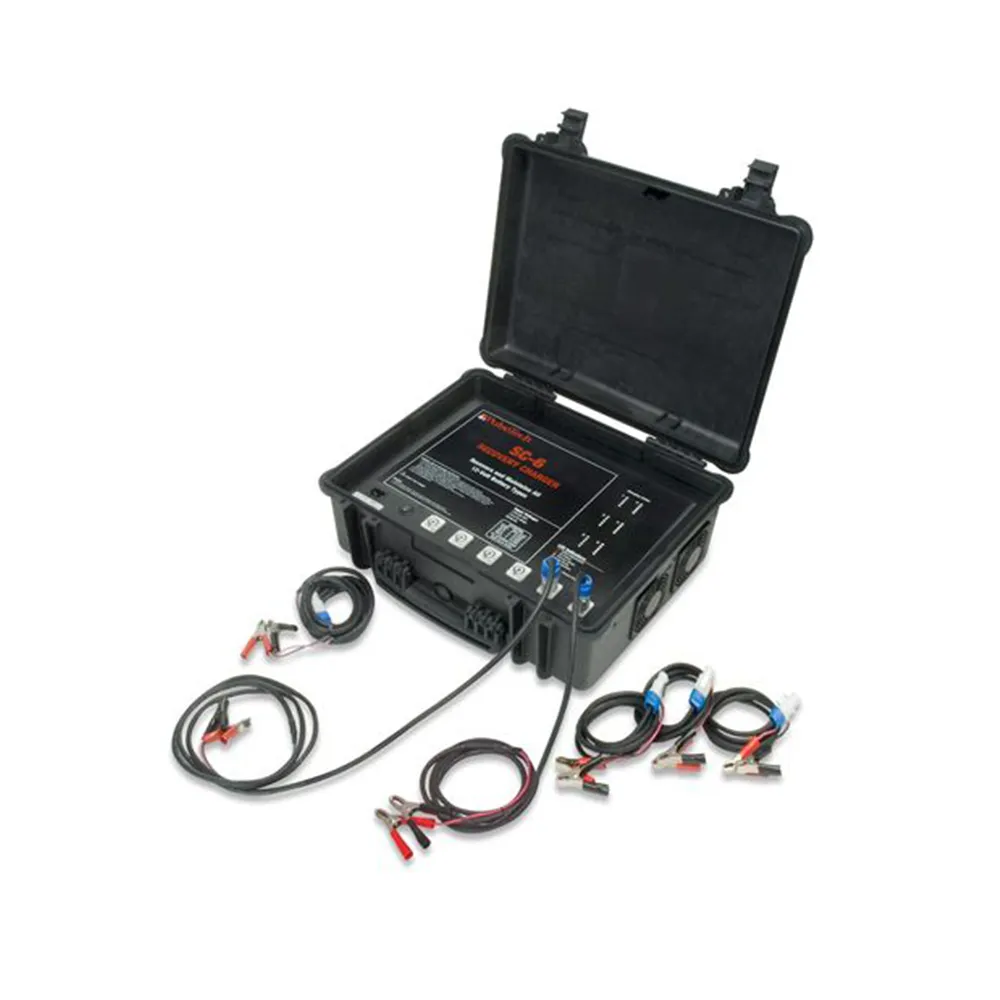

Keep your batteries at their optimal performance levels with our Pulse Technology charging system. This system can charge up to six 12-volt lead-acid batteries quickly and safely, with each station operating independently of the others for maximum efficiency and targeted care.

Specifications:

Input Electrical

• Input Current: 7.5 Amps Max at 100 VAC (all outputs @ 6 Amps

Output Electrical

• Output Current: 6 Amps/channel, 36 Amps Max
• Output Voltage Maximum: 14.8 Volts

Mechanical/Physical Characteristics

• Dimensions: 20" x 17.2" x 9.1"
• Weight: 35 lbs
• Battery Cable Length: 96" - 14 AWB from box to battery clamps

Battery Indicators

• 1 Red Battery Disconnected
• 2 Red Bad Battery
• 1 Yellow Recovery Charge
• 1 Yellow Pulse Charge
• Green Charge Complete
